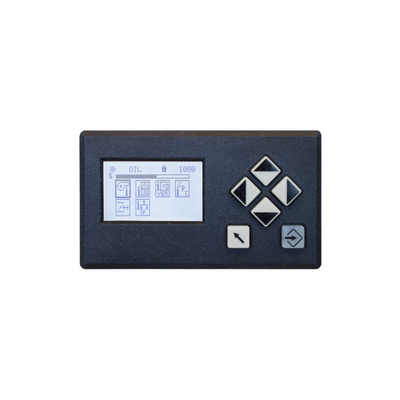

Lamtec - Model BurnerTronic BT300 -Burner Control System

SHARE

BurnerTronic BT300 combines the advantages of an electronic fuel/air compound control with an electronic burner control unit. Up to 3 motorised actuators are available. In addition, the BurnerTronic BT300 can be expanded by various modules, for example, by a module for speed control of the combustion air fan.

Most popular related searches
burner control
burner controller
forced draft burner
low voltage regulations
flame monitoring
flame monitor
burner
burner system
draft burner
combustion management
  • Modular burner control system
  • Electronic compound with up to 4 channels
  • Connectable to control instrumentation (system)
  • Easy parameterisation via icon, adjustable via PC
  • Integrated flame monitoring
  • Firing rate controller (optional)
  • Integrated valve leakage test (VLT)
  • O2 regulation
  • Adaptive CO/H2 combustion optimization (SIL2)
  • Installation directly at the burner

The basic version of the BurnerTronic BT300 has an integrated valve leakage check, flame monitoring, flue gas recirculation, operating hours and start-up counter.

A load control system as well as a O2 controller for optimising oil or gas-fired forced-draught burner are available as well. For adding this, a Lambda Transmitter LT1/LT2/LT3/LT3-F must be installed additionally.

The BurnerTronic BT300 is designed for direct mounting on the burner.

EC Type Examination Certificate (Module B) according to 2014/68/EU (Pressure Equipment Directive)

  • DIN EN 298
  • DIN EN 13611
  • DIN EN 1643
  • DIN EN 12067-2
  • ISO 23552-1
  • DIN EN 50156-1, clause 10.5
  • DIN EN 50156-2
  • DIN EN 61508, parts 1-7 (BT331, BT341)

EC Type Examination Certificate according to 2016/426 (Gas Appliances Regulation GAR)

  • DIN EN 298
  • DIN EN 1643
  • DIN EN 12067-2

SIL 3

  • DIN EN 298
  • DIN EN 13611
  • DIN EN 1643
  • DIN EN 12067-2
  • ISO 23552-1
  • DIN EN 50156-1, Ziff. 10.5
  • DIN EN 50156-2
  • DIN EN 61508 Teil 1-7 (BT331, BT341)

CE Declaration of Conformity

  • 2014/35/EU (Low Voltage Directive)
  • 2014/30/EU (EMC Directive)
  • 2014/68/EU (Pressure Equipment Directive Cat. 4 Mod. B+D)
  • (EU) 2016/426 (Gas Appliances Regulation GAR)
  • 2011/65/EU (RoHS)

USA and Canada

  • ANSI/UL 1998
  • ANSI/UL 372
  • UL 353
  • CAN/CSA-C22.2 No. 199
