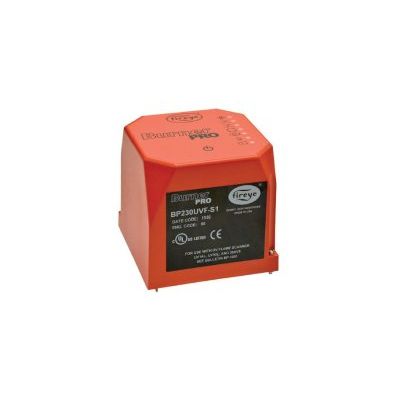

burnerPRo - Model F - Burner Management Control System
BurnerPRO F (BP110UVF/BP230UVF) Control, with integrated flame safeguard and boiler control operation provides simplified operation for single point applications. The Fireye BurnerPRO is a compact, microprocessor based, burner management control system designed to provide the proper burner sequencing, ignition and continuous flame monitoring for commercial heating and process equipment firing oil and gas fuels. The system is designed for use in non-permanent operations that requires burner recycle at least once every 24 hours. Flame monitoring for the UV version is accomplished by the built in amplifier and compatible UV scanner. Control functions and timings are factory set via unique microcontroller firmware. Through seven SMART LEDs, the control provides current operating status and lockout information in the event of a safety shutdown. Refer to the BP-1001 bulletin ordering information section for the various combinations of control functions and timings.
A complete BurnerPRO system includes the BP110/230 and appropriate flame scanner and wiring base. The BurnerPRO performs a safety self test on every start. If a flame is detected prior to a start or during the purge cycle, the fuel valves are not energized and the control locks out. The LEDs and alarm relay is used to annunciate the presence of a lockout condition.
