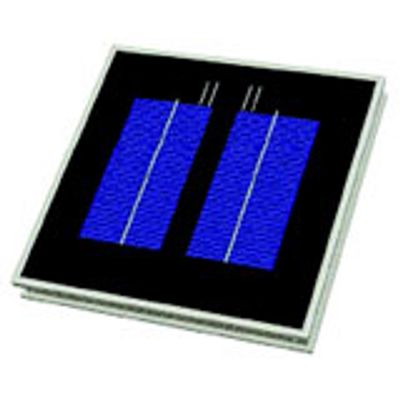

Geonica - Model CCAL -Calibrated Double Solar Cell
FromGEONICA, S.A.
The cables used have the outer diameter between 4,5mm to 10mm, since these are the minimum and the maximum adjustment range admitted by the cable glands, in order to ensure the box IP value. The cable type must be "for outdoors", shielded, 1 kv and UV protected. The cable section admitted by the connection terminals is within the range of 0.22 and 1.5 mm2. This device fulfills the CE marking standards regarding immunity and emitted radiofrequency. Tor telecommunication systems with emitted frequencies in the range above 230MII/, please consult.
Most popular related searches

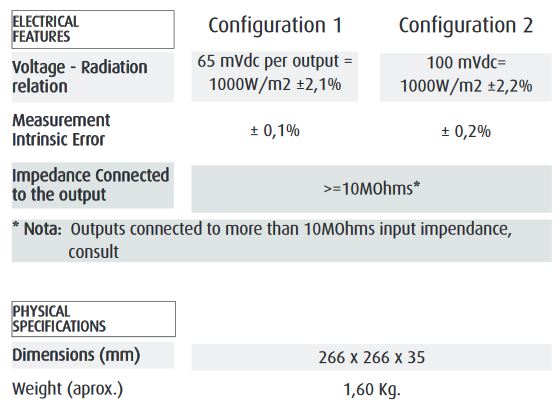

- The calibrated cell allows the following output configurations:
- Two 65mV DC redundant output signals, independent and electrically isolated in order to detect dirty spots on the glass Configuration 1.
- One 100mV DC output signal. Configuration 2.
The output signals depend only on the radiation factor, because device has a temperature compensation.
