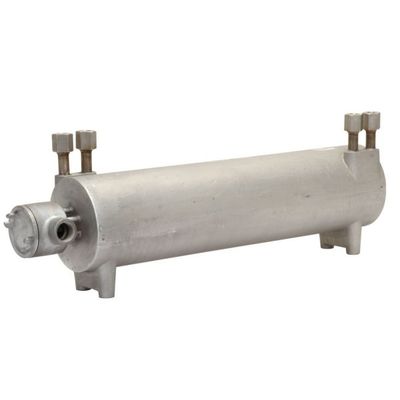

Tempco - Model CHX Series -Cast-In Circulation Heaters
Tempco offers three standard Circulation Heater designs that are compact lightweight unit used for heating gases or liquids. The material being heated is pumped through the coiled seamless 316 SS tubing which has been cast into an aluminum body that acts as the heat exchanger. A cartridge or tubular heating element is the heat source. The material being heated never comes into contact with the heating element.
Most popular related searches
aluminum heat exchanger
circulating heater
heat exchanger
tubular heating element
cartridge heater
electric heater
tube heat exchanger
heat pump
CHX - 100 Series
- Replaceable 5/8" diameter Hi-Density Cartridge Heater
- Cast Aluminum heat exchanger body
- Operating pressure up to 3200 PSI
- Operating temperature up to 650°F (343°C)
- Heater Lengths: 6.5" and 12.5"
CHX - 200 Series
- Cast-In Tubular Heater
- Cast Aluminum heat exchanger body
- Operating pressure up to 3000 PSI
- Operating temperature up to 650°F (343°C)
- Heater Lengths: 13.5", 19.5", and 23.75"
- Single- or Three-Phase
CHX - 300 Series
- Cast-In Tubular Heater
- Cast Aluminum heat exchanger body
- Operating pressure up to 2600 PSI
- Operating temperature up to 650°F (343°C)
- Heater Lengths: 13.5", 19.5", and 25.5"
- Single- or Three-Phase
