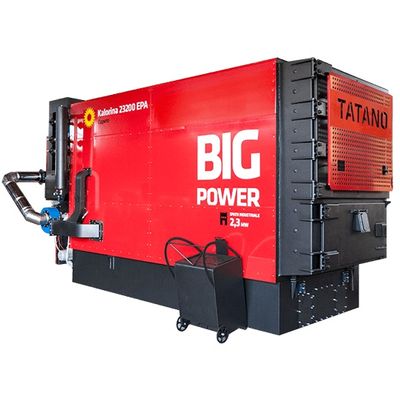

Tatano Kalorina - Model Series K25 -Chips Industrial Hot Air Generators

The Tatano brand industrial hot air generators can be automatically fed with different types of fuels, sawdust, wood chips, pellets, energy grain; they are ideal for heating workshops, warehouses, shopping centers, gyms, greenhouses, farms, industrial warehouses, but also as part of a drying, ventilation or air conditioning system, creating summer or winter conditioning units.

• Each generator is independent and autonomous, allows you to heat where and when you need it.
• The air heating does not require the construction of the traditional thermal power plant and avoids expensive pipelines, sources of heat loss (and not recoverable in case of moving)
• They adapt easily to changes, displacements or extensions of the system
• With the hot air operation, even the largest rooms are easily heated, thanks to the low thermal inertia and the absence of freezing carrier fluid.
• They require minimum maintenance costs thanks to the completely automatic ash removal and the optional pneumatic cleaning system
• The use of biomass fuels allows for lower operating costs, with a high seasonal yield of up to 92% and in compliance with emission values

Power range
from 1 MW to 3 MW

Power modulation range
1:3

Boiler class (according to EN 303-5)
class 3

Hours of annual operation
until 5000

Vector fluid
hot air/overheated air

Fuel water content
8 to 25%

Ash content
from 1 to 5%

Biomasses to be used
Wood chips / Wood / wood pellets

Other compatible biomasses
sawdust, shavings, Agri-pellet, sunflower husk, corn stalks, energy crops

Applications
shops, gyms, workshops, farms, greenhouses, industrial warehouses, drying plants; both for new buildings and for redevelopment

Other features
the heat generated in the form of hot air can be diffused directly into the environment or by pipe ducting for fast, uniform and efficient heating.

Innovative and versatile technological project
What distinguishes the Kalorina K25 E Chips industrial hot air generators from traditional pellet and wood generators is the technology used that guarantees extreme versatility: fully automatic feeding and operation, easy access to the system for maintenance, great adaptability to the typical functioning requirements and continuous power modulation, limited overall dimensions. In addition, the generators can be fed not only with wood chips, but also with pellets, shavings or sawdust.

Built with high quality materials, they have been designed to achieve long life and high yields; they consist of a combustion chamber with new geometry, equipped with an under-feed burner, horizontal heat exchanger made of special steels, the fire bed and the refractory cement loading door resistant to high temperatures for optimal combustion and high heat exchange.

The use of insulating materials for all the exchange body allows the perfect sealing of the hot air path, with high thermal-acoustic insulation. The generator is equipped with a removable drawer, on wheels, for the automatic collection of combustion ash.

With the three-stage combustion principle (primary, secondary and tertiary air flow, regulated separately by inverter) in combination with the regulation of residual oxygen content (Lambda probe) the required power, a high efficiency, a lower fuel consumption and reduced emissions are guaranteed, even at partial load.

Simple and safe functioning
Kalorina K25 E Wood Chips used as a heating system is completely automated and this increases the comfort during use.

Its operation is based on a direct heat exchange system in which the air to be heated is fed into the generator by double suction centrifugal fans and is externally lapped by the combustion chamber and the heat exchanger: the energy produced by combustion is so quickly transferred, producing hot air, which becomes the means of conducting heat in the rooms.

The hot air produced exits in the upper part of the generator with minimal pressure losses and a temperature drop of 40 ° C. It can be introduced directly or ducted through pipes to heat different environments or to have a uniform heat distribution.

The safety devices are highly technological: temperature probes, frequency inverters, thermostats, level sensors guarantee reliability and operational safety in every phase of operation.

Smart regulation for maximum comfort of use
All Kalorina Series K25 E hot air generators are supplied with a pre-wired electrical panel provided with a centralized regulation device fitted as standard. This is a digital modulating regulation, completely programmable according to requirements, to control and optimize the combustion process, with the possibility of regulating power, temperature, depression, the residual oxygen content and the quantity of combustion air.
