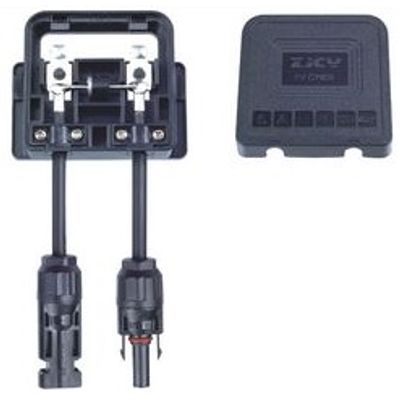

Chuangyuan - Model PV-CY809 -Amorphous Silicon PV Junction Box

SHARE

Certifications: TUV, UL. Certificate No.: R50152126, E330411. Rated Current: 6A, 6A. Rated Voltage: 1000VDC, 600VDC. Temperature Range: -40?~+85?. Safety Class: Class II/ II. Protection Degree: IP65.

Most popular related searches
PV junction box
junction box
  • Wire Size Range: 2.5mm2, 14AWG
  • Flase Resistance : 5VA
  • Contact Resistance : ≤5mΩ
  • Waterproofing Structure: Need potting silica gel
  • Volume of Sillcon Gel: 29g/29?
  • Width of Copper Ribbons: Up to 6mm
  • Connection Method: Welding
  • Insulation Material: PPO
  • Contact Material: Copper alloy,tin plated
  • Overall Dimension:69.8×58.1×17mm fake piaget schmuck
  • Optional Connector: PV-CY01L,MC4
