Ningbo Chuang Yuan PV Technology Co., Ltd products
Crystalline Silion PV Junction Box

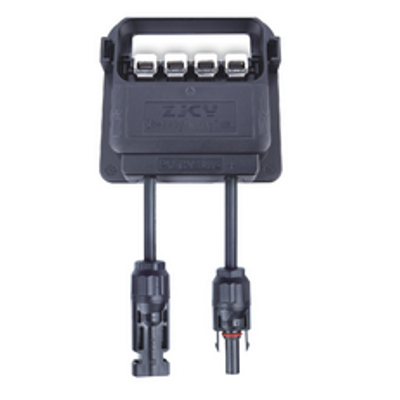

Chuangyuan - Model PV-CY1202 - Crystalline Silion PV Junction Box
Certifications: TUV: UL. Certificate No.: R50229203: E330411. Rated Current: 13A, 15A. Rated Voltage: 1000VDC: 600VDC. Temperature Range: -40°C~+85°C .
Chuangyuan - Model PV-CY808 (Five Tracks) - Crystalline Silion PV Junction Box
Rated Current: PV-CY808. Circuit: -. Distance between the terminals: 25.5mm. No. of diode: 4. Diode type: 12SQ045. Certifications: TUV.
Chuangyuan - Model PV-CY901 - Crystalline Silion PV Junction Box
Type: PV-CY901. Rated Current: 6A-8A. Rated Voltage: 1000VDC. Temperature Range: -40℃～+85℃. Safety Class: Class II/ II, Protection Degree: IP65. Wire Size Range: 2.5mm2/4mm2.
Chuangyuan - Model PV-CY1201 - Crystalline Silion PV Junction Box
Rated Current: 10A. Distance between the terminals: 16mm. No. of diode 3. Diode type: 12SQ045. Certifications: TUV&UL .
Chuangyuan - Model PV-CY807 - Crystalline Silion PV Junction Box
Rated Current: 8A. Distance between the terminals: 22mm. No. of diode: 3. Diode type: SB1245.
Other Products
Chuangyuan - Model PV-CY906 - Junction Box
Rated Current : 2A. Rated Voltage : 1000VDC. Temperature Range : -40?~+85?. Safety Class : Class II/ II. Protection Degree : IP65.
Chuangyuan - Model PV-CY809 - Amorphous Silicon PV Junction Box
Certifications: TUV, UL. Certificate No.: R50152126, E330411. Rated Current: 6A, 6A. Rated Voltage: 1000VDC, 600VDC. Temperature Range: -40?~+85?. Safety Class: Class II/ II. Protection Degree: IP65.
