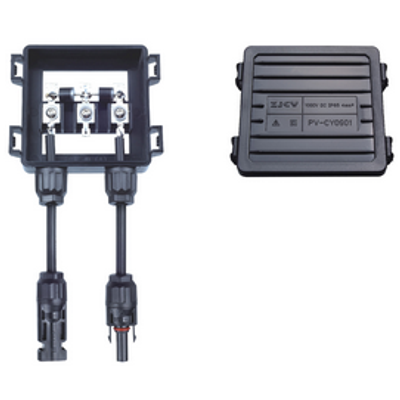

Chuangyuan - Model PV-CY901 - Crystalline Silion PV Junction Box
Type: PV-CY901. Rated Current: 6A-8A. Rated Voltage: 1000VDC. Temperature Range: -40℃～+85℃. Safety Class: Class II/ II, Protection Degree: IP65. Wire Size Range: 2.5mm2/4mm2.
Most popular related searches
- Flase Resistance: 5VA
- Contact Resistance: ≤5mΩ
- Waterproofing Structure: Seal/密封圈
- Volume of Sillcon Gel: N/A
- Width of Copper Ribbons: Up to 6mm/replique montre suisse france
- Connection Method: Welding
- Insulation Material: PPO
- Contact Material: Copper alloy,tin plated
- Overall Dimension: 87×73.8×24mm
- Optional Connector: PV-CY01L,MC4,MC3
