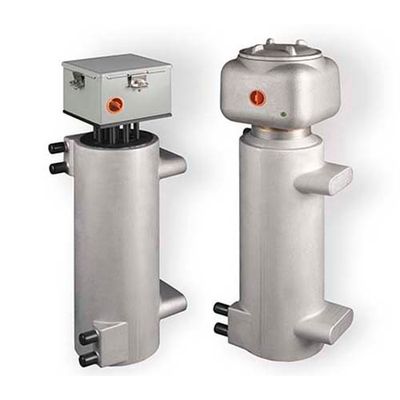

CAST-X - Model 3000 - Circulation Heater
APPLICATIONS: Rocket & Jet Fuel Test Stands. Mud Testing Applications (oil exploration). LNG Pre-Heat & Moisture Removal. Powder Coating Pre-Wash Systems. Packaging Sterilization. Phase Change for Cryogenic Applications.
Most popular related searches
- Fluid Path has No Contact with Heating Elements
- Heated Media is Isolated in Seamless 316 Stainless Steel Tubes
- Allows for Safe Heating of Explosive Gases & Flammable Liquids
- Excellent Performance in High-Pressure Applications
- Suitable for Use with Sterile and Zero Contaminant Processes
- Compatible with Standard Controls (PID, PLC, Multi-Loop, etc.)
- Small Size Enables Easy Integration into Larger Machines
- Self-Draining Flow-Tubes, and Long-Life Heating Elements
Power:
- 1 kW Total to 24.6 kW Total
- Voltage Range: 208 - 575 V
- Max Line Current: 35 A per circuit
Tubing:
- .750” OD (3/4") (19.1 mm)
- .065” Wall (1.7 mm)
- Overall Process Tube Length: 142” (3606 mm) each
- 316L Stainless Steel (standard)
- Inconel (optional upgrade)
- Passivated or Electro-Polished (optional upgrades)
- Max Pressure: 3300 psi (227 bar)
Enclosures:
- NEMA 4 (moisture-resistant)
NEMA 7 / ATEX (explosion-proof)
Max Working Temperatures:
- NEMA 4 (moisture-resistant): 572°F (300°C)
- NEMA 7 / ATEX (explosion-proof): 482°F (250°C)
- Published temperatures are for housing at 12 o’clock position;
Higher temps may be possible at 6 o’clock position. See factory for details.
Sensors & Controls:
- K or J Type Thermocouples
- Resistance Temperature Detectors (RTDs)
Available Accessories:
- Insulating Jackets
- Compression Fittings

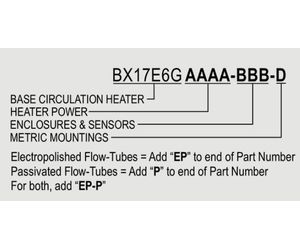

Building a CAST-X 3000 Part Number:
Use the tables below to build each section of your CAST-X 3000. After assigning letters/numbers for each applicable section, you will have a complete part number, ready to quote.
For assistance, contact CAS directly.
