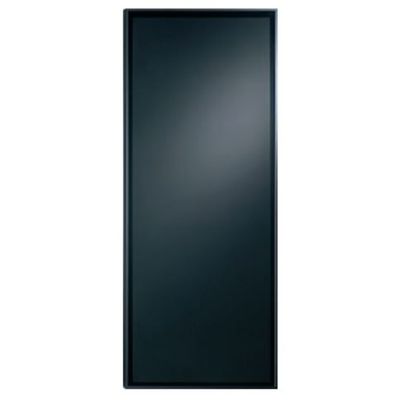

Bosch Obsidian - Model C100-A1 -CIS Thin Film Module

Mechanical Specification. External dimensions (length × width): 1206 × 506 mm. Thickness: 30 mm. Composition: glass-glass-module. Cell type: CIS thin film. Front glass: 3 mm cover glass, low iron (heat-strengthened). Rear glass 3 mm float glass. Frame aluminium frame, black anodized. Weight 10.5 kg. Junction box protection classification IP65, with bypass diode. Connector MC4 intermateable. Cable length 2 × 800 mm. Cable cross section 1.5 mm². Maximum static load 2,400 N/m². Operating temperature range -40 °C … +85 °C.
