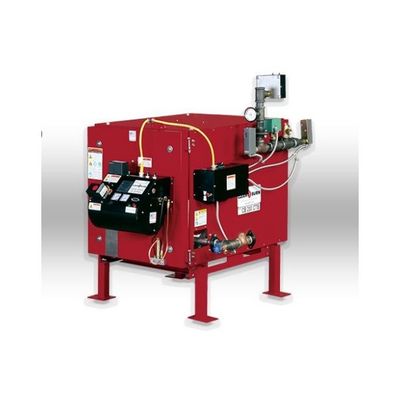

Clean Burn - Model CTB-200 -Waste Oil Boiler

FromClean Burn, LLC

SHARE

The Clean Burn Model CTB-200 waste oil boiler has an input rating of 200,000 BTU/hr and outputs 148,400 BTU/hr. The CTB-200 is UL listed for use in central heating systems. With CTB-200, you spend 30 minutes cleaning every 750 hours of operation. It is uniquely designed for installation flexibility. Engineered for use as a single boiler unit, or it can be used in combination with any Clean Burn boiler to create a system perfectly sized for any facility.

Most popular related searches

waste oil boiler

central heating system

central heating

boiler cleaning

heat exchanger efficiency

Three-pass heat exchanger creates more heat efficiency
Low-mass water design provides quick start -up
Patented burner engineered exclusively for waste oil
System is pre-wired, ready for installation
Narrow cabinet designs provide installation flexibility
Unequaled service and support from Clean Burn Distributors

MODEL CTB-200: SPECS.

BTU/hour input: 200,000 / 58.6 kW
BTU/hour output: 148,500 / 43.5 kW
Fuels:

Used oils: Crankcase,ATF, hydraulic
Fuel oils: #2, #4, and #5 fuel oil

Heating Surface: 39 sq. ft. / 3.6 sqM
Design water flow per coil: 15 gpm / 57 lpm
Cabinet dimensions: 40″ L x 29″ W x 29.5″ H 101cm x 74cm x 75cm
Overall dimensions (with burner/breach/plumbing):

59″ L x 33.25″ W x 37″ H
150cm x 84cm x 94cm

Approx. Weight: 677 lbs. / 304.7 kg
Electrical Requirements:

115 VAC 60 Hz single phase*
*230V/ 50Hz units also available

Maximum oil consumption: 1.4 GPH / 5.3 lph
Stack size: 8″ / 20cm
Air compressor required:

2.0 CFM @ 25 PSI
3.4 m3/h @ 1.7 bar

Recommended clean-out: 750 hours
*Values indicated above are nominal. Actual values will vary depending on fuel and installation.
