Clean Burn - Model CTB-500 -Waste Oil Boiler

FromClean Burn, LLC

SHARE

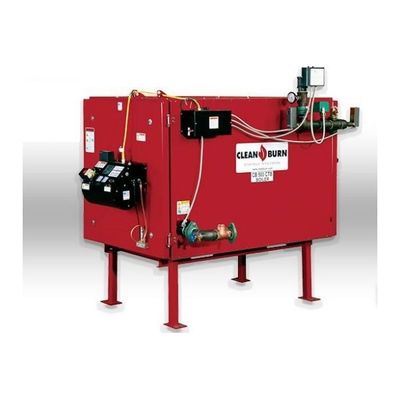

The Clean Burn Model CTB-500 waste oil boiler has an input rating of 500,000 BTU/hr and an output rating of 372,000 BTU/hr. The CTB-500 is UL listed for use in central heating systems. It can be used in combination with any Clean Burn boiler to create a system perfectly sized for any facility. The CTB-500 is the largest of it’s product line. You spend 30 minutes cleaning every 1000 hours of operation. It is uniquely designed for installation flexibility. Engineered for use as a single boiler unit, or as part of a combination of CTB-500 boilers working as a larger system.

Most popular related searches

waste oil boiler

central heating system

central heating

boiler cleaning

heat exchanger efficiency

Three-pass heat exchanger creates more heat efficiency
Low-mass water design provides quick start -up
Patented burner engineered exclusively for waste oil
System is pre-wired, ready for installation
Narrow cabinet designs provide installation flexibility
Unequaled service and support from Clean Burn Distributors

MODEL CTB-500: SPECS.

BTU/hour input: 500,000 / 146.5 kW
BTU/hour output: 372,000 / 109.0 kW
Fuels:

Used oils: Crankcase,ATF, hydraulic
Fuel oils: #2, #4, and #5 fuel oil

Heating Surface: 97 sq. ft. / 9.0 sqM
Boiler water volume: 20.6 gal. / 78 L
Design water flow per coil: 37 gpm / 140 lpm
Cabinet dimensions:

66.38″ L x 40″ W x 42″ H
169cm x 102cm x 107cm

Overall dimensions (with burner/breach/plumbing):

86.13″ L x 43.5″ W x 47.85″ H
219cm x 111cm x 122cm

Approx. Weight: 1600 lbs. / 725.7 kg
Electrical Requirements: 115 VAC 60 Hz single phase* *230V/ 50Hz units also available
Maximum oil consumption: 3.57 GPH / 13.5 lph
Stack size: 10″ / 25cm
Air compressor required: 2.5 CFM @ 25 PSI
4.25 m3/h @ 1.7 bar
Recommended clean-out: 1000 hours
*Values indicated above are nominal. Actual values will vary depending on fuel and installation.
