Zeecos - Model AC - Combination Round Flame Burners

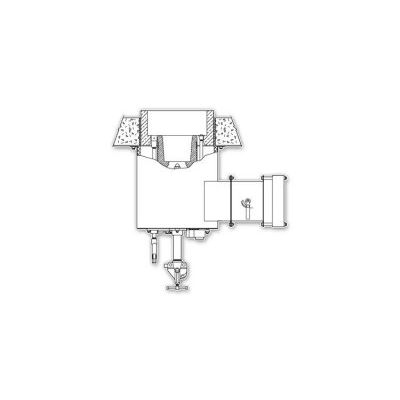

The Zeeco AC round flame combination oil and gas burner.

Most popular related searches

Stable flame over a wide range of conditions
High Turndown of 5:1 or greater for most cases
No stabilization metal used in the burner throat
Low maintenance cost since tip mass is small and exposed into firebox less than 1" (25 mm)
Reasonable cost and great value
Combustion air dampers are controlled by gears for precise control
Bearings are used for the combustion air damper shafts for smooth, precise operation
Configurations available: plenum mounted or individual wind-box
310 Stainless Steel (Type HK) gas tips

Burner Model: AC Combination Oil & Gas
Fuels: Combination Oil & Gas
Description: Round Flame Combination
NOx Reduction Method: None
Predicted NOx Emissions Range (Natural Draft) with gas fired: 90 ppmv to 150 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
gas fired: 120 ppmv to 250 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 2 oil fired: 120 ppmv to 250 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 2 oil fired: 150 ppmv to 300 ppmv
Predicted NOx Emissions Range (Natural Draft) with No. 6 oil fired: 250 ppmv to 400 ppmv
Predicted NOx Emissions Range (600°F/316°C Air Preheat) with
No. 6 oil fired: 300 ppmv to 450 ppmv
Combustion Air Induction: Natural, Forced, Induced & Balanced Draft
Mounting Options: Up-fired and Side-fired
Natural Draft Heat Release Range: 1 MM to 20 MM Btu/hr [0.293 to 5.860 MW]
Forced Draft Heat Release Range: 1 MM to 50 MM Btu/hr [0.293 to 14.65 MW]
Turndown: 5:1 gas & 3:1 oil
Typical Excess Air Range: 10% to 25%
