AEG Identifikationssysteme GmbH

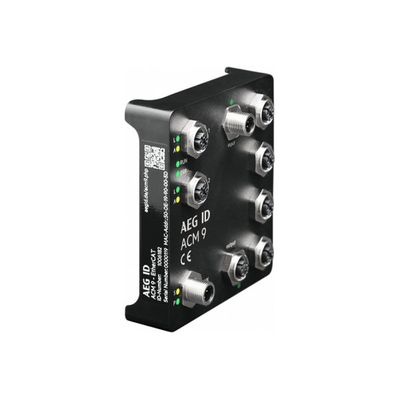

AEG - Model ACM 9 - Communication Module
The ACM 9 communication module connects the ARE i9 readers with the latest interfaces. At the same time, it can be used as a multiplexer, as up to 4 readers can be connected. This can be done in a mix, so LF and HF components can be combined.
Most popular related searches
- ELECTRICAL CHARACTERISTICS
- reading system ARE i9
- interface EtherCAT®, EtherNet/IP™, Profinet®, Serial
- power supply 24V DC
- ENVIRONMENT
- storage temperature -20°C up to +70°C
- operating temperature -20°C up to +70°C
- housing protection IP 65
- schock & vibration IEC 68-2-6 / 29
- DIMENSIONS
- Weight Ca. 250 g
- Length 111 mm
- Width 99 mm
- Height 27mm (max. 37,5mm including M12 ports)
- Material PC | Aluminium
- ADDITIONAL INFORMATION
- Mounting Option: DIN Rail Adapter
