BAUR Syscompact - Model 400 - Compact Cable Fault Location Systems
The Syscompact 400 is an efficient and safe cable fault location system for high-resistive and intermittent faults on all types of cable. The biggest innovation is the high-performance IRG 400, which replaces its predecessor and is the perfect complement to the tried-and-tested system. Safety was prioritised during development. Both the laptop and the tablet that are used to operate the IRG are connected to the device via Wi-Fi, allowing your measurement engineers to perform measurements from a safe location. Following measurement, the data can either be exported directly or the laptop simply taken into the office to evaluate the data there.
- Suitable for all voltage levels
- A compact system that covers well-established fault location methods
- Precise cable fault location for every type of fault and various cables
- GIS data import and export on site
- Simple report generation
- Laptop acts as an operating control and as a working tool in the office
- Clean measurement data that is saved for future measurements
- Measured data can be compared with previously created fingerprint
- NEW: Large IRG display
- NEW: Intuitive, ergonomically designed BAUR BUI-F app
- Integrated separation filter for safe measurement on live cables up to 400 V
- Wi-Fi connection allows remote operation outside the HV area
- Optimum galvanic isolation

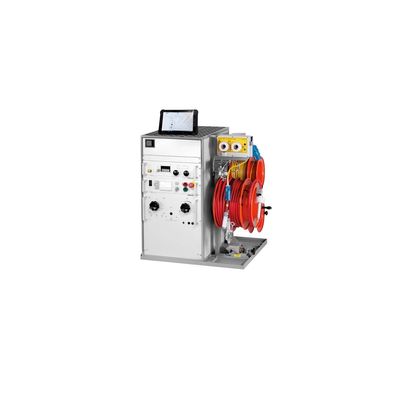

The Syscompact 400 combines the tried-and-tested Syscompact solution with the newly developed, high-performance IRG 400, which can be controlled with either the large 15.6" laptop and BAUR Software 4 or with the 10.1" tablet and new touch-operated BAUR BUI-F app.
In the previous version, the IRG was stored in the drawer. It is now integrated directly behind the drawer as a 19" plug-in unit. This allows the laptop or tablet to be stored in the drawer. The laptop and tablet can be removed in order to perform measurements. Thanks to the Wi-Fi connection, it is also possible to position yourself and the device in a safe and convenient location.
