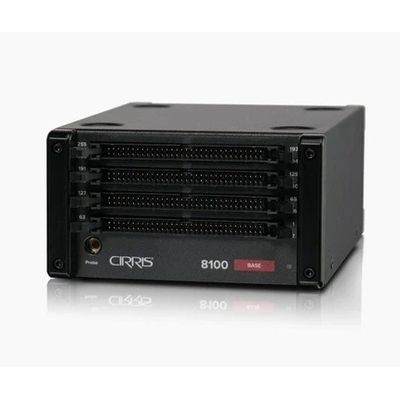

Cirris - Model 8100 -Compact Low-Voltage Harness Tester
With a compact and rugged design, the low-voltage tester Cirris 8100 supports up to 100,000 test points and tests complex wire assemblies as part of your production process. The 8100 low-voltage tester, powered by Easy-Wire® software, offers seamless integration into your production process. Supporting 256 to 100,000 test points, it efficiently tests complex wire assemblies, including electrical components. Operators can view connector images with target pin locations during assembly or rework, while graphic presentations and prompts simplify both the build process and troubleshooting. Its compact design ensures flexible placement on a workstation, harness board, or distributed alongside other units. Optional Digital IO, OPC UA, and API enable smooth integration with factory automation systems.
Compact Unit with Optional Expansions

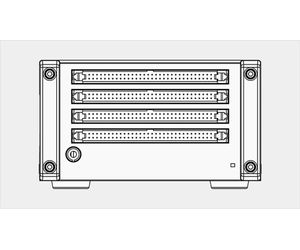

The Cirris 8100 comes with standard 256 test points and is expandable to 100,000 points. Its small size makes it nonintrusive and easy to distribute around a larger device.
The harness tester supports flexible test assemblies and custom measurements , e.g. higher accuracy 4-wire Kelvin resistance, with components such as resistors, diodes, capacitors.

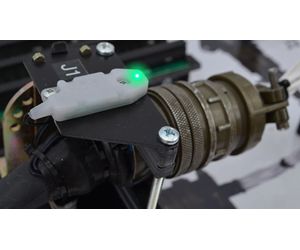

Graphical representations with visual and audio operator prompts simplify the build process and troubleshooting. The unit is also compatible with Cirris Smart-Lights®
Probes can be used to identify points and make resistance measurements. Wrist straps allow finger-touch identification of test points.
8100
Metric
- 2-wire, insulation resistance max.: 3 MΩ
- 2-wire, resistance accuracy ±: 2 %
- 2-wire, resistance accuracy resolution: 0.1 Ω
- 4-wire, resistance accuracy resolution: 0.005 Ω
- 4-wire, resistance max.: 100 Ω
- 4-wire, resistance accuracy ±: 2 %
- 4-wire, current max.: 0.01 A
- 4-wire, current min.: 0.0001 mA
- 2-wire, insulation resistance accuracy ±: 2 %
- 2-wire, insulation resistance accuracy resolution ±: 0.1 Ω
- Component test, resistors accuracy ±: 2 %
- Component test, resistors accuracy resolution: 0.1 Ω
- Component test, resistors max.: 3000 kΩ
- Component test, resistors min.: 0.1 Ω
- 4-wire, resistance min.: 0.005 Ω
- 4-wire, voltage max.: 6 V
- Component test, capacitors accuracy ±: 10 %
- Component test, capacitors accuracy resolution: 0.05 nF
- Component test, capacitors min.: 0.1 nF
- Component test, capacitors max.: 1000 µF
- 2-wire, resistance min.: 0.1 Ω
- 2-wire, resistance max.: 100 kΩ
- 2-wire, current max.: 10 mA
- 2-wire, current min.: 0.1 µA
- 2-wire, voltage max.: 6 V
- Power supply input: 115 / 230 V, 50-60 Hz
- Component test, twisted pairs: verifies proper pairing
- Test point interface: 64 pos. shrouded .1” latching male header
- Component test, diodes: 0 to 6 VDC
- Height: 83 mm
- Depth: 75 mm
- Width: 143 mm
- Weight: 1.5 kg
- Test points min.: 256
- Test points max.: 100000
- Digital outputs: 28
- Digital inputs: 20
Imperial
- 2-wire, insulation resistance max.: 3 MΩ
- 2-wire, resistance accuracy ±: 2 %
- 2-wire, resistance accuracy resolution: 0.1 Ω
- 4-wire, resistance accuracy resolution: 0.005 Ω
- 4-wire, resistance max.: 100 Ω
- 4-wire, resistance accuracy ±: 2 %
- 4-wire, current max.: 0.01 A
- 4-wire, current min.: 0.0001 mA
- 2-wire, insulation resistance accuracy ±: 2 %
- 2-wire, insulation resistance accuracy resolution ±: 0.1 Ω
- Component test, resistors accuracy ±: 2 %
- Component test, resistors accuracy resolution: 0.1 Ω
- Component test, resistors max.: 3000 kΩ
- Component test, resistors min.: 0.1 Ω
- 4-wire, resistance min.: 0.005 Ω
- 4-wire, voltage max.: 6 V
- Component test, capacitors accuracy ±: 10 %
- Component test, capacitors accuracy resolution: 0.05 nF
- Component test, capacitors min.: 0.1 nF
- Component test, capacitors max.: 1000 µF
- 2-wire, resistance min.: 0.1 Ω
- 2-wire, resistance max.: 100 kΩ
- 2-wire, current max.: 10 mA
- 2-wire, current min.: 0.1 µA
- 2-wire, voltage max.: 6 V
- Power supply input: 115 / 230 V, 50-60 Hz
- Component test, twisted pairs: verifies proper pairing
- Test point interface: 64 pos. shrouded .1” latching male header
- Component test, diodes: 0 to 6 VDC
- Height: 3.3 in
- Depth: 7.5 in
- Width: 5.6 in
- Weight: 3.2 lb
- Test points min.: 256
- Test points max.: 100000
- Digital outputs: 28
- Digital inputs: 20
