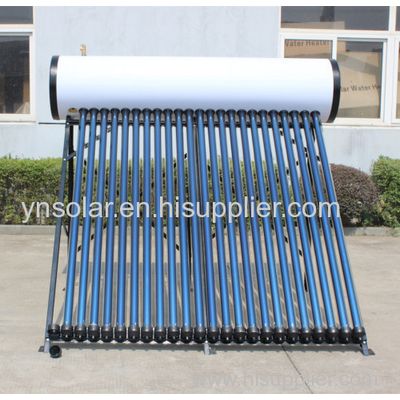

Yinuo - Compact Pressure Solar Water Heater
Compact Pressure Solar Water Heater working principle: The solar heater tank has no exhaust hole, therefore, it must bear the pressure came from tap water and hot water,when use, the hot water comes out because of water pressure. Vacuum tube absorbs solar energy, and conductive copper pipe transfers the heat into the pressurized solar water heater tank. In this case, the water inside the tank becomes hot. No water in the heat pipe makes the whole system could bear pressure.
Most popular related searches
pressurized solar water heating
compact pressurized solar water heating
solar water heating
solar water heating tank
solar water
solar water tank
domestic hot water
solar tank
solar energy
pressure solar energy
- Adopts the best conduction performance metal- heat pipe (copper)
- Can be used all year round in the cold climate
- High efficiency, rapid warming. Heat pipe in vacuum tube could transfer hot energy to cold water in pressurized solar water heater tank rapidly
- The whole pressure of the system is up to 1.5kg/M2, the inlet could connect the tap water directly, the max pressure can be 0.6Mpa
- No water in the tube, one tube broken don`t influence the system working
- The design for inner tank is reasonable and scientific, which could hold 100, 000 times fatigue test without any damage
- Dual-purpose brackets for both flat and inclined roof
- The system is pressurized,it keep a constant temperature of water in the tank, avoid the problem came from water level controller malfunction which could cause water flow out
- Domestic hot water for shower, washing
- Min. Order: 1 Set/Sets
- Trade Term: FOB,CFR,CIF,DDP,EXW
- Payment Terms: T/T, WU
- Place of Origin: Zhejiang, China (Mainland)
- Means of Transport: Ocean, Air
- Packing: Cartons
- Delivery Date: 10-15days
Product Attribute
- Type: Pressurized
- Pipe Material: Copper
- Application: Water Heater
- Interior Material: Stainless steel SUS304-2B
- Outer tank Shell: White coated color steel / Silver fluorocarbon (PVDF) plate
- Bracket Material: Hot-DIP Galvanized Steel Plate

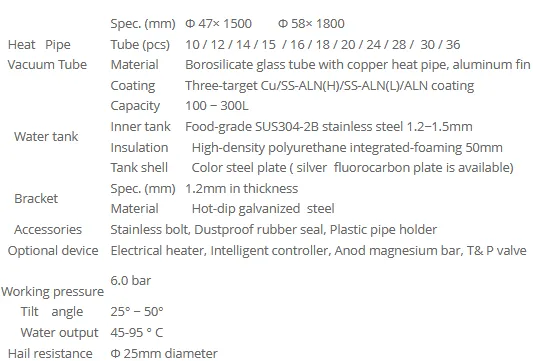

Description
- Inner tank material: SUS304-2B stainless steel. Available thickness is 1.2-1.5mm.
- Outer tank material: Color chromed steel or galvanized steel or stainless steel. Available thickness is 0.5mm.
- Heat pipe Vacuum tube: 58x1800mm , Material: High borosilicate glass, three-layer coated vacuum tube. Over 15 years service life. Hail resistance: 25mm.
- Insulation layer: High density polyurethane foam, available thickness is 50-60mm.
- Very popular tank capacity in present markets is 150-300L.
- Frame material: Galvanized steel or aluminum alloy.
