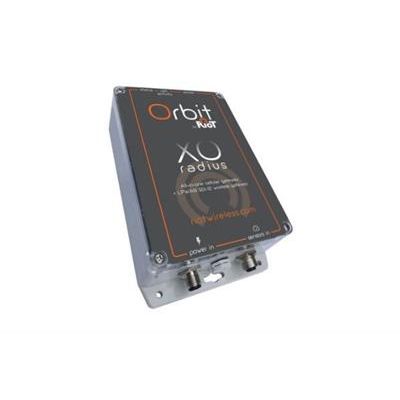

Orbit - Model Xo - Complete Radius Monitoring Station

• All-in-one integrated system for quick, reliable deployments.
• Connects to Radius Motes/Slaves to permit cellular connection to remote SDI-12 sensors.
• Weatherproof packaging for deployment in harsh environments. Quick-connect military-style connectors
• Supports SDI-12, analog, and pulse sensors, providing exible deployment options.
• Integrated cellular transceiver with intelligent network connection management ensures low-power, extremely reliable data acquisition.
• Data logged locally on an SD ash storage card as redundant backup.
• Pre-provisioned for instant cellular network connection and simple, reliable setup (use user-supplied SIM cards outside North America).
• One year subscription to CloudInsight cloud-based hub software included.
• Up to 10 sensors per Mote/slave, 6 Motes/slaves per repeater, 3 repeaters per network.

• Cellular gateway
• Functions as a TITAN Radius Gateway
• Includes battery, solar panel, solar charge regulator, SD card for backup storage, all mounting hardware,
• Includes one year of cellular service, pre-provisioned and ready to go

GENERAL

• Data Storage Removable 2 GB SD memory card (FAT 32)
• Non-volatile memory All setup parameters
• Logging interval 1 second to 24 hours (sensor dependent)
• Reporting interval 2 minutes to 24 hours

Cellular communications

• Dual band CDMA 800, 1900 MHz
• Penta-Band HSPA+
• GSM Quad band 850, 900, 1800, 1900 MHz
• UMTS/HSPA Penta Band 850, 900, 1700, 1900, 2100 MHz
• EGPRS / WCDMA / HSDPA / HSUPA Protocol Stack

CURRENT CONSUMPTION

• Listen/trigger mode/idle <2 mA
• Data receive / store / prepare for transmission 150 mA
• Data transmit 250 mA

LPWAN COMMUNICATIONS

• Range: Up to 15 km (9.3 miles). Signals can penetrate certain foliage, buildings and obstructions. Range depends on antenna
• height/type and obstacles in path of line of sight.
• Wireless frequency 915 and 868 MHz certied, 860‐930 MHz frequency range

ELECTRICAL

• Internal battery options
• Primary: 8.6Ah ‐ 38Ah, 3.6V
• Secondary: 10Ah Li‐ion rechargeable
• Custom option: Hybrid
• TX output power 24.3 dBm (270 mW)
• Solar panel 5W, 12V
• Input voltage 10‐18V, reverse polarity protected.
• TX output power 128 mA
• Optional external battery pack 10‐18V

SENSORS

• Maximum number of sensors 10 directly connected, 180 SDI-12 sensors in an LPWAN network
• Analog input 4 analog channels, single-ended
• Input type: 2 wire, 0–2.5 V or 4-20 mA current loop
• Sensor power: 24 VDC switched (under rmware control)
• Analog to digital (0-2.5 VDC): 21-bit resolution
• Pulse input
• 2 pulse channels
• Continuity or TTL: 0 V to 2.2 V - 5 V
• Sensor power 12VDC switched, during measurement
• Maximum output current 138 mA (12V), up to 500 mA pulse (12V) with capacitor battery option (available 2018-Q3)
• On-board sensors Temperature sensor for optimizing power management and battery charging in cold operations.

ENVIRONMENTAL

• Environmental sealing IP65
• Lightning protection AC transient voltage suppressor (TVS) on each sensor port input
• Operating temperature ‐40°C to 75°C
• Storage temperature ‐40°C to 75°C

PHYSICAL

• Dimensions (H x L x W) 4.1 cm (1.6”) x 17.0 cm (6.7”) x 12.2 cm (4.8”)
• Warranty 1 year limited parts and labour
• LED indicators RSSI, sensor, battery, operating status
• Weight (excluding battery) 12.8 oz (400g)
• Weight (including full battery configuration) 19.2 oz (600g)
• Warm-up time 30s
• External antenna Wip antenna, high-gain omnidirectional
• Security 128 bit AES encryption
