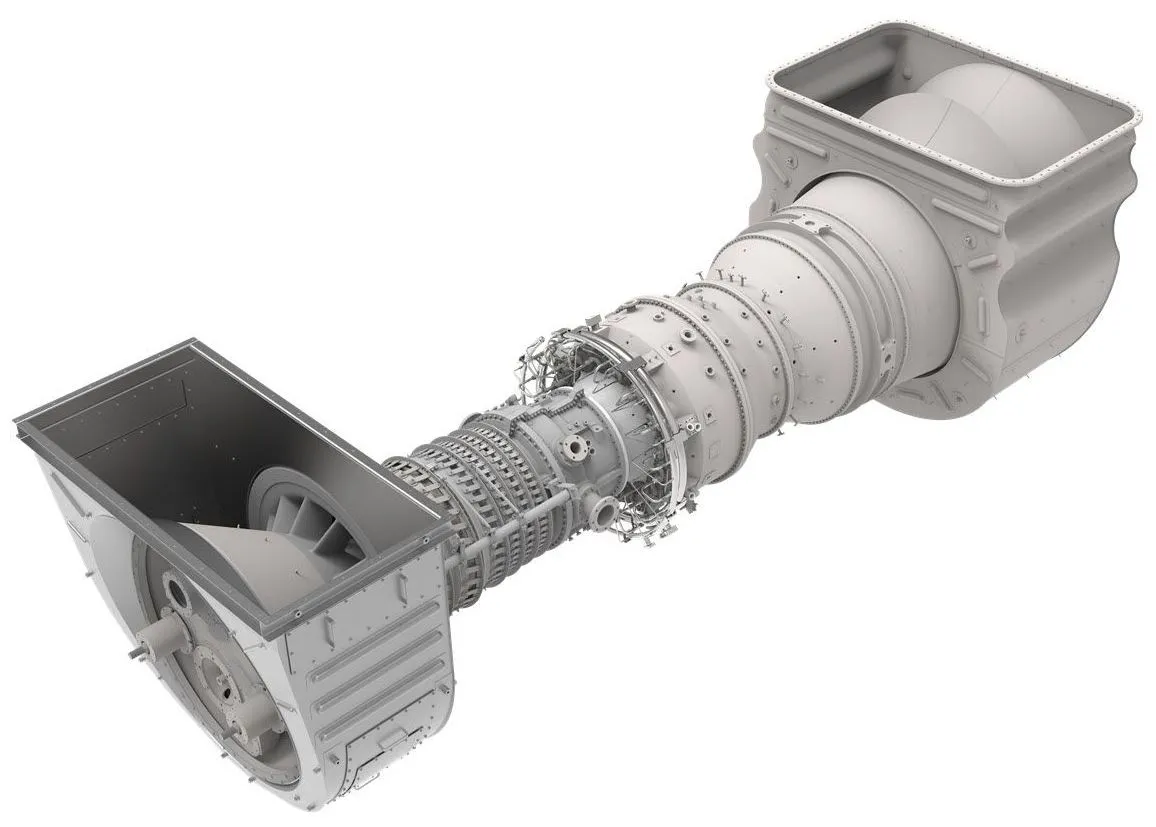

STI - Model Titan 350 - 39 MW -Compressor Set
The Titan 350 is a world class highly efficient gas turbine designed for the gas compression market in the 47K-52.5K hp range (35-39 MW). This product has robust design features based on the proud legacy of the Titan product line and is well suited for gas compression applications in both the upstream and midstream markets.
Most popular related searches
high power density
gas turbine design
combustion system
gas compressor
generator set
turbine design
gas turbine
natural gas compressor
power optimization
gas turbine efficiency
Unit -US
- Power: 52,500 hp
- Heat Rate: 6200 Btu/hp-hr
- Exhaust Flow: 855,000 lb/hr
- Exhaust Temperature: 910ºF
- Combustion System: SoLoNOx (DLE) Conventional
Units: Metric
- Power: 39,000 kW
- Heat Rate: 8780 kJ/kW-hr
- Exhaust Flow: 387,820 kg/hr
- Exhaust Temperature: 490ºC
- Combustion System: SoLoNOx (DLE) Conventional
- Introduced in 2022
- 41% Efficiency, Shaft
- Modular Package Design
- Wide Fuel Range Including H2 Blends
- High Power Density, Improved Availability, Durability and Serviceability
- SoLoNOx Low Emissions Options at 9, 15, and 25 ppm NOx on Natural Gas
- Available for Compressor Set, Mechanical Drive and Generator Set Applications
- All Packages Capable of InSight Monitoring System; Global Fleet Connectivity
- Supported by a Worldwide Customer Service Organization
