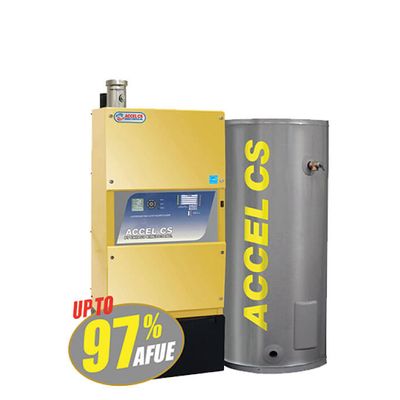

Model Accel CS - Condensing Boiler
Simply Smarter and Built to Last! Accel CS’s Superior Boiler Design Makes it the World’s Most Durable, Reliable, and Efficient Condensing Boiler. Lower Your Fuel Bills While Enjoying Nearly Endless Hot Water: Accel CS is one system for both heat and hot water. Combining several Energy Kinetics’ developed breakthrough technologies, including Hybrid Energy Recovery®, SmartBoost™, Sealix® hot water heat exchangers with its industry-leading boiler design, Accel CS delivers the best comfort and the highest energy efficiency. As a result, Accel CS lowers fuel bills (up to 40% or more) while creating comfortable, warm living spaces and nearly endless hot water for showers, kitchen, bath, and laundry.
Combining several Energy Kinetics’ breakthrough technologies, Accel CS Outperforms All Other Condensing Boilers
- INTELLIGENT BY DESIGN
The Brain (Smart Controls)
Known as the world’s smartest boiler, Energy Kinetics’ boiler technology outperforms and outlasts the competition. It’s the boiler with The Brain, our Energy Manager.
The Condensing Energy Manager maximizes home heating efficiency, cuts fuel bills and is perfectly integrated with our low mass boiler. It heats quickly, gets the job done, then searches for left
over energy in the system and sends the remaining heat into your home or hot water storage tank.
The result is NO energy wasted!
Typical Condensing Boiler Issues: For contractor convenience, most boilers are set to run hotter than needed, which causes three boiler issues:
- Energy is wasted when the burner is running by allowing more heat to escape out the venting from hotter boiler and vent temperatures.
- Maintenance is increased as condensing slows to a halt and stops flushing contaminants out of the boiler. This fouls the boiler, leading to increased service calls or even premature boiler failure.
- More energy is wasted when the rooms reach their desired temperature and the burner turns off, wasting heat left in the boiler and system piping.
Problems Solved! These three condensing boiler problems are solved with Accel CS’ boiler design and its simple, smart controls. With Accel CS, contractors can set a very aggressive low operating “temperature reset” to optimize efficiency and maximize condensing operation, lowering fuel bills and allowing the cleanest operation. If any room is not heating quickly enough, SmartBoost™ prioritizes comfort by temporarily increasing the boiler’s temperature to make your home warm, therefore solving the first two issues. The third issue is solved when the Energy Kinetics’ Energy Manager anticipates the rooms will soon reach their desired temperature and the burner is turned off early. The Hybrid Energy Recovery® cycle then captures energy left over in the boiler and system and sends the remaining heat into your home, so no energy is left wasted in the boiler and your rooms are comfortably heated.
- WATER FLOW
Delivering More Hot Water, Faster and with Less Energy
Plate heat exchangers are the best and most widely used way boilers make hot water in the world.
Our plate heat exchanger delivers continuous hot water unmatched by any combi boiler or indirect tank with coil. There are no studs to break or gaskets to leak with easy service union connections. Our Sealix® permanent non-stick coated surfaces prevent lime and mineral build up for exceptional long term performance in hard water applications.
Conventional condensing boiler designs are flawed for hot water. Old fashioned water tanks with coil systems are inefficient because the entire tank heats slowly. In addition, the temperature of the system’s boiler rises above the tank’s temperature, and when the tank eventually fully heats, the boiler and piping finish hot, wasting energy every hot water heating cycle.
By comparison, Accel CS’ oversized plate heat exchanger heats the tank with the full output of the boiler, providing more hot water for showers, tubs, and spas. It condenses at a much higher rate for nearly the entire hot water cycle for cleaner operation, longer life, and more heat from less fuel. In addition, our exclusive Sealix® permanent non-stick coated surfaces prevent plate heat exchanger lime and mineral build up, reducing maintenance and delivering exceptional long term performance in hard water applications.
Energy Kinetics’ Energy Manager anticipates the tank is nearly completely heated and the burner is turned off early. The Hybrid Energy Recovery® cycle then captures energy left over in the boiler and piping and sends the remaining heat into your hot water storage tank, so no energy is left wasted in the boiler and your tank is fully charged. Simply Smarter.
- THE SYSTEM
Exceptional Boilers by Design
The engineers at Energy Kinetics have deconstructed every component of the conventional condensing boilers and used superior design and materials to produce a much higher efficiency design that delivers more hot water for longer. The design is also much more robust than conventional condensing, wall hung, and combi boilers that are prone to fouling and short life from tiny flue and water passes. With dozens of improvements over condensing boilers, you will understand why Accel CS easily outlasts and outperforms the competition. These improvements include, but are not limited to the following:
- The Accel CS vessel contains over 70 pounds of high grade American made 316L stainless steel throughout, where competitors often use low grade materials that shorten the boiler’s life due to corrosive condensate exposure.
- The Accel CS’ unique made in USA fire tube design is built to last with thicker and better materials and wide open water and flue passages. The Brain (Energy Manager) delivers the industry’s best condensing operation resulting in higher efficiency and cleaner operation contributing to reduced maintenance and a longer service life.
- Low pressure drop, wide open water passes contribute to enhanced heat transfer and more reliable operation with more condensing. To cut costs, competitors’ designs are so restrictive that they need special external piping and additional pumps that actually prevent condensing operation. Competitors’ flawed designs lead to premature fouling and failure while wasting energy.
- Unique to the Accel CS, it has 37 specially formulated stainless steel super turbulators provide maximum condensate production and efficiency, for longer and cleaner operation with lower fuel bills. These allow fully serviceable access, where typically condensing boilers have inaccessible flue passes which can foul and cause premature failure. These tiny passes are so small some manufacturers recommend cleaning them with a credit card.
- The advanced plate heat exchanger optimizes hot water production and allows condensate to pour out, keeping the boiler clean and saving energy. Other’s tiny plate heat exchangers or tank with coil designs often only dribble out condensate, increasing fouling and reducing efficiency and longevity.
- The Accel CS’ fold down door provides easy access to controls, burner, and boiler, making access very maintenance friendly.
- The highest grade AL294C stainless steel condensate collector and flue for long life (a rugged material originally developed for the nuclear power generating industry).
- Hard water? Our exclusive Sealix® non-stick surface prevents scale buildup, and adds a scale stopper for reliable operation (up to 25 grains of hardness) without cleaning.
