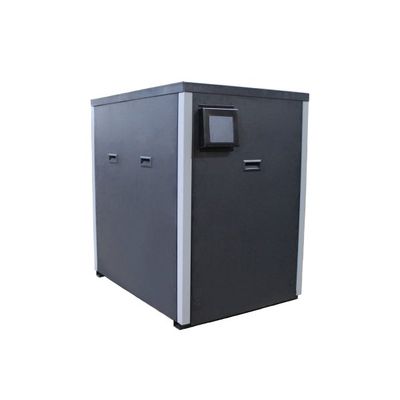

Thermal Solutions - Model AMP-400 -Condensing Boilers
The AMP Condensing Boiler Series (AMP) from Thermal Solutions delivers efficiency with unprecedented space saving innovation in a service friendly design. Available in 400, 500, 650, 800, and 1000 MBH input levels, all models are 97% Thermal Efficient. The 316L stainless steel heat exchanger features cavernous internal circuits with commercially sized tubes that minimize pressure drop and proactively reduce pump in sizing, saving on install and electrical operations.
Ratings & Capacities
Input: BTUH : 399,000 Btu/hr
Output: BTUH : 387,000 Btu/hr
Fuel : Natural Gas / LP
Inlet Gas Pressure (NG) : 14"W.C. Max. 4" W.C. Min.
Approvals
Approvals : Intertek ETL Listed C US
ASME Design Data
ASME Design Data : Max. 160 PSIG & 210ºF
Electrical Supply Options
Electrical Supply Options : 120v/1ph/60hz - 7 Amps
Ratings and Dimensional Data
MBH Input : 400 MBtu/hour
MBH Gross Output : 388 MBtu/hour
Thermal Efficiency : 97 %
Shipping Weight : 460 Pound
Specifications
DHW Recovery (GPH) : 470
Natural Gas Connection (NPT) : .75
