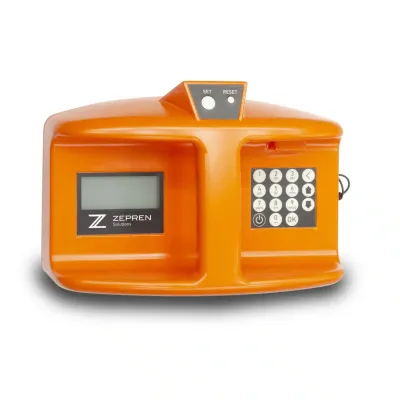

Zepren - CONDOR Portable Solar Reflectometer

SHARE
CONDOR is a portable solar reflectometer designed to measure the reflectance of mirrors across six wavelengths with high reliability. The device complies with the ISO9050 and ASTM-G173 standards and features optical channels comprising LED-type light sources paired with photodiodes for detecting reflected radiation in the central wavelength of each LED. It is built to perform consistently outdoors, unaffected by ambient light, making it suitable for use in varying environmental conditions. The device supports the characterization of both flat and curved mirrors with first or second-side reflections and can handle different thicknesses. With fast measurement capabilities and a scanning speed of 20 nm/s, CONDOR optimizes solar field performance by providing critical data necessary for effective cleaning strategies. Its software enables tagging of measurements, easy data export, and self-calibration via a pattern mirror. The hardware boasts long battery life, enabling more than 2000 measurements per charge, and an ergonomic design for error minimization. ZEPREN Solutions manages previous models for calibration and repair under an exclusive license agreement with Aragon Photonics Labs S.L.
Most popular related searches
LED lighting
solar plant
solar performance
solar design
CSP

The CONDOR measures reflectance with a high level of reliability in six wavelengths, characterizing the response of a mirror at different wavelengths along the sun spectrum applying the ISO9050 and ASTM-G173 standards. The equipment has several optical channels made up of an LED-type light source and a photodiode, which detects the radiation reflected in the central wavelength of the LED. It is designed to work outdoors without influence of the ambient light in the measurements. The mirrors that CONDOR characterizes can be flat or curved, as well as reflection on the first or second side and with different thicknesses. The equipment has excellent performance outdoors, in conditions of high external irradiation and high temperatures.

CONDOR provides you with the necessary information to optimize the cleaning strategy, minimizing cost and improving the solar field overall performance. It is used in solar plants and laboratories all over the world.

  • Broadband measurement with 6 wavelengths
  • Specular light detection only, no ambient light influence.
  • Flat and curved mirrors, 0 to 4 mm thickness.
  • Fast measurement (10s)
  • Scanning speed: 20 nm/s
  • Tagged measurements: Can store thousands of tagged measurements in its memory.
  • Easy data exporting: Is possible to export data in .csv format.
  • Self-calibration: Can be autocalibrated using an accessory pattern mirror.
  • Software desktop: Own software desktop to visualize and archive measurements
  • Long battery life: More than 2000 measurements with a single battery charge.
  • Ergonomic & durable: Ergonomic design that minimizes measurement errors.
