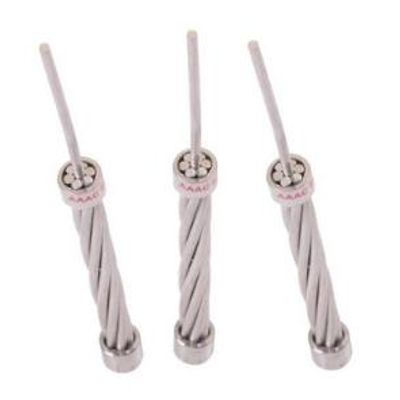

Dosense - Model AAAC -Conductor Construction Almelec Cable

Almelec Cable,AAAC(all aluminum alloy Conductor) has the following advantages, compare with ACSR

Almelec Cable,AAAC(all aluminum alloy Conductor) has the following advantages, compare with ACSR

1. High strength/weight ratio, good sag characteristics.  AAAC is 21%~26% lighter than ACSR, and the deformation tension is 21%~23% smaller.
2. The tensile strength of AAAC is 1.7~1.8 times that of ordinary wire. The ratio of the total breaking force to the weight per unit length is more than 10km, which is higher than the value of the reinforced steel strand (about 9km)  Therefore, it can reduce the tower height, or increase the tower distance, and reduce the project investment.

According to The Experience of France, when using, the gear distance is increased from 350m-400m to 550m, and the construction investment can be saved by 5%-8% when using high-strength AAAC instead of ACSR in new lines.

Dosense Cable is a professional AAAC Conductors (All Aluminum Alloy Conductor) manufacturer and reliable supplier in China.We are able to provide integrated solution in overhead power lines, and wide production range in transmission line.Our main product covers overhead conductors(bare overhead conductors such as AAC,AAAC,ACSR,ACAR), Galvanized Steel Wire/Gey wire/Grounding Wire, OPGW, Aluminium Clad Steel Wire, PVC wire, PVC/XLPE power cable, Aerial Bundled Cable/MV ABC cable, rubber cable, control cable, etc.
