NetAlly LinkRunner - Model AT -Copper & Fiber Network Tester

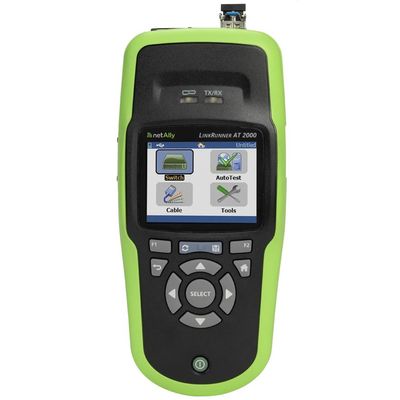

This is the Home Screen
The LinkRunner AT is a rugged, fast, and complete copper and fiber Ethernet network connectivity tester. It performs an essential set of network connectivity tests, enabling you to quickly and accurately identify and solve network connectivity problems.

Switch
Allows you to quickly validate switch connectivity and configuration.

Benefits:
Quickly view switch information, such as name/port, detected link speed/duplex, and VLAN configuration. If PoE is enabled, test the power that the switch can offer under load, against what the switch advertises.

AutoTest
Runs a suite of functional tests, from PoE, link to network service availability, and support drill down for detail results. Result can be saved on unit or upload to the complimentary Link-Live Cloud Service.

Benefits:
Reduces time and effort by replacing the need to use multiple tools and follow multiple procedures to functionally verify the network’s ability to support clients or IoT devices.

Cable
Validate cable wiring and distance, or identify cable faults.

Benefits:
Quickly identify cable faults like opens, shorts, or split pairs. You can also validate the wiremap, cable length, or see if the other end of the cable is connected to a switch/station.

Tools
Provides multiple configuration options, such as date/time, language, PoE, IP Address and VLAN, etc.

Benefits:
Quickly adjust to your test environment by easily creating configuration profiles that can be used when needed.

General
Dimensions: 3.5 in x 7.8 in x 1.9 in (8.9 cm x 19.8 cm x 4.8 cm)
Weight: 18 oz (0.5 kg)
Battery: Removable, rechargeable lithium-ion battery pack (18.5 Watt-hrs)
Battery Life: Typical operating life is 6 hours; Typical charge time is 3 hours
External AC Adapter/Charger: AC input 90 to 264V AC 48 to 62 Hz input power DC output 15V DC at 1.2 Amps
Display: 2.8 in color LCD (320 x 240 pixels)
Keypad: 12-key elastomeric
Tone Generator: IntelliTone™ digital tone: [500 KHz]; analog tones: [400 Hz, 1 KHz]
Media Access; Copper: RJ-45: 10BASE-T, 100BASE-TX, 1000BASE-T and PoE (IEEE 802.3af and 802.3at)
Media Access; Fiber: SFP Adapter Port supports 100BASE-FX and 1000BASE-LX/ SX/ZX (LRAT-2000 Only)
Cable Tests: Pair lengths opens, shorts, splits, crossed, straight through, and cable ID
Power over Ethernet (PoE): Single-ended testing:
User-defined testing to IEEE 802.3at class 0, 1, 2, 3, 4 without LLDP negation, or 4 with LLDP negotiation
The following PSE PoE parameters are measured:
Pairs used
Received class
PSE type
Unloaded voltage(V)
Loaded voltage (V) (LRAT-2000 with TruePower™)
Unloaded power (W) (LRAT-1000)
Loaded power (W) (LRAT-2000 with TruePower™)
Supporting Operating Systems: Windows® 8.1 and Windows® 10
Minimum hardware requirement:
Processor: 1 GHz or better CPU
RAM: 1 GB or more
Hard Disk: 1 MB available space
Display: 1024 x 768 high color, 32-bit (recommended)
Interface: USB

Environmental
Operating Temperature and Relative Humidity: 32°F to 113°F (0°C to +45°C) Note: The battery will not charge if the internal temperature of the tester is above 113°F (45°C)
Operating Relative Humidity (% RH without condensation): 90% (50°F to 95°F; 10°C to 35°C) 75% (95°F to 113°F; 35°C to 45°C)
Storage Temperature: -4°F to 140°F (-20°C to +60°C)
Shock and Vibration: Random, 2 g, 5 Hz-500 Hz (Class 2) 1 m drop
Safety: EN 61010-1 2nd edition
Safety (LR-AT 2000 only): EN/IEC 60825-1:2007, EN/IEC 60825-2:2004+ A1:2007 (LRAT- 2000 only)
Altitude: 4,000 m; Storage: 12,000 m
EMC: FCC Part 15 Class A, EN 61326-1
Certifications and Compliance: Conforms to relevant European Union directives Conforms to relevant Australian standards Listed by the Canadian Standards Association

LinkRunner AT Manager Software
Supporting Operating Systems: Windows® 8.1 and Window®10
Processor: 1 Ghz or better
RAM: 1 GB or more
Hard Disk: 1 GB available space
Display: 1024 x 768 high color, 32-bit (recommended)
Interface: USB
