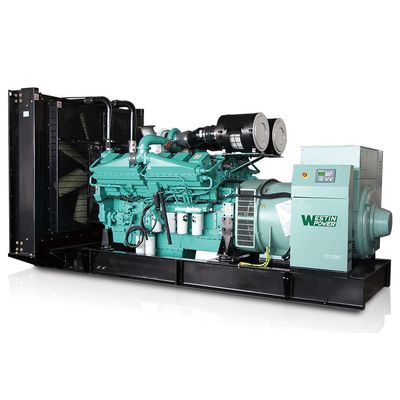

Westinpower - Model TC Series - Cummins Engine Diesel Generator Sets

SHARE
The TC series diesel generator sets from Westin Power are engineered to deliver reliable power, featuring Cummins engines that provide a power range from 30kVA to 2000kVA. These generator sets can be equipped with Stamford, Leroy-Somer, or Sinocox alternators, ensuring versatility and adaptability to various operational requirements. The advanced SGC 420 controller offers sophisticated battery charge management and is designed for AMF applications with both mechanical and electronically controlled engines, supporting CANbus protocol. Additionally, the AGC150 controller is a microprocessor-based, digitally programmable unit that furnishes comprehensive control and protection for the generator set. It is capable of managing single or multiple generator setups, making it optimal for synchronization projects or operations paralleled with the mains. The TC series comprises various models such as TC44, TC62, TC90, TC165, TC220, TC265, TC375, TC385, TC500, TC550, TC880, TC1110, and TC1375, each available in specific configurations to suit diverse voltage and power needs.
Most popular related searches
diesel generating set
diesel generator set
generator set
diesel generator
automatic transfer switch
power generating system
power generation system
diesel engine
hydropower turbine
steam turbine
  • Adopting Cummins engines, offering cutting-edge design, dependable performance and long service life;
  • Alloy steel crankshaft and connecting rod, ensuring high durability;
  • Continuous operation with high combustion efficiency and low fuel consumption;
  • PT pump fuel injection technology, guaranteeing safe and reliable operation;
  • Anti-vibration units are optimally designed, while the pressure boosting system and low-speed cooling fan enable the noise level to be significantly lowered;
  • Generator excitation system allows the generator set to recover the voltage in the event of a sudden load, guaranteeing the reliability of operation;
Standard Features
  • Westinpower provides one-stop service to meet all customers' needs of power generation system and components.
  • All generator sets and components undergo rigorous prototype testing, precise manufacturing and strict inspection.
  • TC series, TP series, TY series and TMC series diesel generator sets are all compliant with national TLC certificates.
  • Warranty: 18 months from date of shipment, after 1000 hours of running, or 1 year from the date of initial startup (whichever comes first).
  • Options of imported engine that complies with EU and US EPA emission standards are available. The majority of domestic brand engines meet the requirements of the national Stage III emission standard, and some generator engines from domestic brands can meet US and European emission standards, such as Yuchai engine. Please see the file "Comparison of US, EU and China emission standards for diesel engines used in non-road mobile machinery (NRMM)".
    US EPA Tier: Tier1, Tier2, Tier3, Tier4 Interim, Tier4 final emission standards
    EC Stage: Stage I, Stage II, Stage IIIA, Stage IIIB, Stage IV emission standards
    China (Nonroad): Stage II, Stage III emission standards

Other Features
  • Optional ATS (Automatic Transfer Switch) automatically switches between the diesel generator and mains in the case of a power failure.
  • WASS (Westinpower Auto Synchronization System) enables multiple diesel generator sets to be synchronized and connected in parallel.
  • Double stacking of generator sets maximizes the utilization of single shipping container' volume.

Alternator Features
  • The alternator converts mechanical energy of water turbine, steam turbine or internal combustion engine into electrical energy in the form of alternating current.
  • The generator alternator works on the principle of electromagnetic induction and electromagnetic force. It makes use of external rotating power to produce an electrical current induced in the conductive material using the electromagnetic induction method.
Features of these alternators
  • All these alternators are suitable for land and marine applications.
  • Stamford alternator: Cummins Generator Technologies was founded in 1904, it produces alternators under the Stamford® brand which has set the industry standard. Stamford alternator utilizes wire-wound (random winding) technology and with a power range extending from 4kVA to 5000kVA, suitable for nearly all generator set configurations.
  • Leroy-Somer alternator: 4-pole alternator conforms to the key international standards and regulations below: IEC 60034, NEMA MG 1.32 - 33, ISO 8528/3, CSA, UL 1446, UL 1004. It can be integrated into CE marked generator sets.
  • Sinocox alternator: compliant with national and international standards such as IEC60034, NEMA MG1-22, IS08528, CSA C22.2-100, VDE 0530, GB755, etc. Power range of 8.1kVA-2790kVA.
