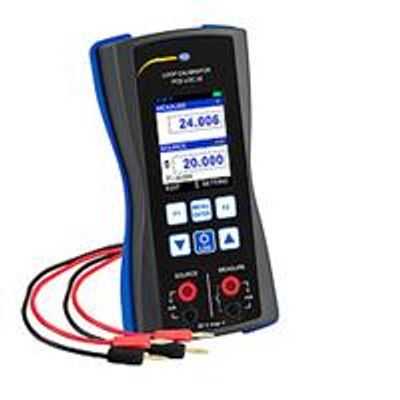

PCE Instruments - Model PCE-LOC 20 - Current/Voltage Data Logger
For Simulation and Measurement of Current and Voltage / Li-Ion battery / Continuity tester / Ramp function / Data logger. The current/voltage data logger PCE-LOC 20 can be used to directly simulate process currents in current loop, mV and mA. This allows the current/voltage data logger to be used to set process displays, data loggers, paperless recorders, etc. Thanks to the galvanically isolated connections, this current/voltage data logger can simultaneously serve as a source and as a measuring device. Here, it does not matter whether currents are measured and voltages are simulated, since the functions work completely independently of each other.
Most popular related searches
The current/voltage data logger PCE-LOC 20 has a high accuracy of 0.02% of the measured value in all operating modes. The current/voltage data logger is powered by a rechargeable battery that can be charged via a USB power adapter. The memory can also be read out by the current/voltage data logger via this interface. For ease of operation, the LCD contributes from the current/voltage data logger.
In addition to the direct specification of the simulated parameters, the current/voltage data logger has a ramp mode that allows the parameters to be changed incrementally and automatically over a defined period of time. The current/voltage data logger PCE-LOC 20 can also specify the scaled process value. This means, for example, that a temperature in °C / °F is specified directly and the current/voltage data logger simulates the analog process value in mA.
- Simultaneous simulation and measurement mode
- Battery operation
- For mA, mV and V
- Graphic display
- Supply of sensors possible
- Manual mode & ramp function
- Continuity test
- Data logger function
- Display modes:
- Measurement: mA / V / / mV
- Simulation: mA / V / / mV
- Maximum input voltage: 30V DC
- Input impedance measurement:
- mV / V:> 1 MΩ
- Current measurement: 10 Ω
- Response time: <100 ms
- Load impedance:
- > 10 kΩ at mV / V
- <750Ω at mA
- Refresh rate display: 10 Hz
- Isolation: 500V DC
- Data storage:
- Internal memory
- 150000 readings
- Interface: USB 2.0
- Display:
- 2.4" TFT LCD
- 240 x 320 pixels
- LED illuminated
- Output voltage current loop: 24V DC / 24-mA
- HART mA loop resistance: 250 Ω ± 20%
- Special features:
- Step and ramp function
- Automatic and manual mode √x, x2: For the measuring function
- Continuity test: Adjustable threshold up to 100 Ω
- Power supply: 3.7V / 2300-mAh Li-ion battery
- Charging time: About 5 h
- Power adapter:
- Input: 100 ... 240V AC / 50/60 Hz
- Output: 5V / 1 A DC
- Battery life: Approx. 18 h: Simulation and measurement with low LCD illumination, approx. 8 h: Measurement with low LCD illumination
- Dimensions: 162 x 82 x 40 mm / 6.4 x 3.2 x 1.6 in
- Weight: About 300 g / < 1 lb
- Degree of protection: IP20
- Operating conditions: Battery operation: 0 ... 55°C / 32 ... 131°F, 30 ... 90% RH Main operation: 0 ... 45°C / 32 ... 113°F, 30 ... 90% RH
- Storage conditions: -20 .. 60°C / -4 ... 140°F, 30 ... 90% RH non-condensing
- Heating time: About 15 minutes
- 1 x Current/Voltage Data Logger PCE-LOC 20
- 2 x Laboratory cables with 2 mm plug
- 2 x Adapter 2 mm on 4 mm laboratory cable
- 2 x Alligator clips
- 1 x Mini USB cable
- 1 x Power supply 5V / 1 A
- 1 x Carrying bag
- 1 x Software
- 1 x User manual
