ENEPAQ TinyBMS - Model s516 - Customizable Battery Management System
Customizable Battery Management System: Tiny BMS s516 (30A Peak Discharge); Battery Management System (BMS) 30A – The Tiny BMS is an essential component for every Lithium battery. Enepaq Tiny BMS supports lithium batteries of any chemistry and up to 60 V nominal. Battery capacity from sub-1 Ah to 655 Ah can be managed easily. Tiny BMS measures individual voltages of parallel cell groups and manages the switching of load and charger. During charging, cells are balanced by bleeding off higher cells to accomplish full balance and maintain good health of the battery pack. State-of-Charge is calculated as well, and is available via communication bus to be displayed for the user.
Safe and Secure Battery Connection
For safe and reliable operation, it’s crucial to follow the correct sequence when connecting the Tiny BMS s516 to your battery pack. Improper connection can damage both the battery and the BMS. For detailed instructions, please refer to the Tiny BMS s516 manual on page 12, paragraph 2.3.2, Tiny BMS battery pack connection sequence. This section outlines the step-by-step process for safe battery pack connection.
Low-Current Handling: Manage battery packs with discharge currents up to 30A (peak) and sustained currents of 15A, making it suitable for moderate-power applications.
Advanced Cell Management:
- Monitor individual cell voltages of 4 to 16 series-connected Lithium-ion cells (4s-16s).
- Balance cells to maintain equal charge levels and prolong battery life through dissipative balancing up to 150 mA.
Comprehensive Protection:
- Voltage and Current Cutoff Protection: Disconnects the battery to prevent over-charging or over-discharging through programmable voltage thresholds.
- Battery Pack Thermal Management: Monitors battery temperature and can be configured to take corrective actions, such as reducing charge or discharge current, to prevent overheating. Shuts down the battery pack if it exceeds user-defined temperature limits measured by internal or external sensors (supports up to two external temperature sensors).
- Automatic Recovery: Recovers from warning or fault states after a timeout period or manual intervention.
Highly Customizable BMS Solution:
- Tailor-made Solutions: Our company provides firmware and hardware customization to perfectly align with your unique project requirements.
- Integrated Power Management: Built-in power switches streamline system design.
- Flexible Connectivity: Supports various communication protocols including UART, MODBUS, CAN, and Bluetooth for easy integration.
- Wide Range Compatibility: Works with 12V to 60V battery systems (4s-16s) and all lithium chemistries.
- Adjustable Parameters: Fine-tune voltage, current, and temperature settings for optimal performance.
Advanced Features:
- Dissipative Balancing up to 150 mA.
- Supports up to two external temperature sensors and one dual-range current sensor.
- Event Log and Usage Statistics for in-depth analysis.
- Free Firmware Upgrades to ensure your BMS stays up-to-date.
- Programmable Inputs and Outputs for expanded functionality.

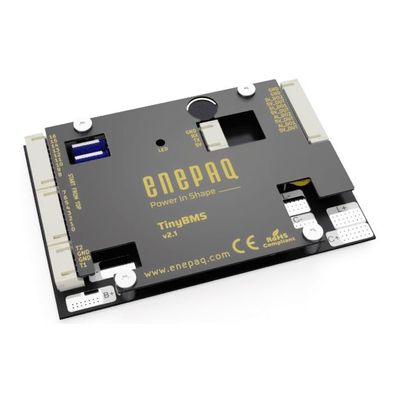

- Compact Design: Ultra-compact design (95x65x9 mm and only 97g) maximizes space efficiency in your application.
- Current Sensor Connection: Simplifies integration with external current sensors.
The Tiny BMS s516 is paired with the Battery Insider software, a user-friendly interface that provides comprehensive configuration and monitoring capabilities:
Configuration:
- Define cell settings (voltage thresholds, balancing).
- Set discharge and charge current limits.
- Program temperature protection.
- Configure automatic recovery settings.
- Select BMS operation mode (single port/dual port).
- Manage external components (charger, load, contactor, temperature sensors).
Real-time Monitoring: View critical battery parameters like cell voltages, currents, temperatures, and state of charge.
Data Analysis:
- Event Logging: Track BMS events and diagnose potential issues.
- Lifetime Statistics: Gain insights into battery usage patterns.
- Data Logging: Perform detailed analysis of BMS behavior.
- Firmware Updates: Keep your BMS up-to-date with the latest firmware.
- Protects Lithium-ion batteries from damage caused by over-charging, over-discharging, excessive current, and temperature extremes.
- Extends battery life through cell balancing and improved safety features.
- Enables informed maintenance decisions through comprehensive battery parameter monitoring.
- Provides advanced data analysis for troubleshooting and performance optimization.
- Offers user-friendly software for easy configuration and management of the low-current BMS.
- Highly Customizable: Tailor the BMS to your specific project needs with firmware and hardware customization options.
Overall, the Tiny BMS s516 with Battery Insider software is a comprehensive and customizable solution for moderate-current Lithium-ion and LiFePO4 battery management, offering a high degree of control, protection, and monitoring capabilities for demanding applications.
