DAE Pumps - Prime Hydraulic Power Units
The DAE Pumps Prime Hydraulic Power Units provide high-quality power for all hydraulic tools and facilities. Available in a variety of sizes ranging from 25 HP to 500 HP, the DAE Pumps Prime hydraulic power units are diesel-driven and provide up to 4000 PSI of pressure. Hydraulic flow range up to 95 GPM with a hydraulic tank of up to 130 gallons. The diesel engine’s tank can also hold up to 130 gallons. Our portable hydraulic power packs are the right size for all your applications. Compact and lightweight, these power packs can go with you anywhere and trailer units are DOT certified for highway towing to bring with you more power for those heavy-duty jobs.
DAE Pumps HPUs provide the necessary power for all our hydraulic submersible slurry pumps and the Growler series of hydraulic excavator-mounted dredge pumps and cable-deployed dredge pumps. They are the true workhorse behind these pumps. These hydraulic power systems include high-quality and carefully designed safety, environmental, and maintenance features. There is no diesel particulate filter (DPF), eliminating tremendous maintenance headaches caused by active regeneration used by other engine manufacturers.

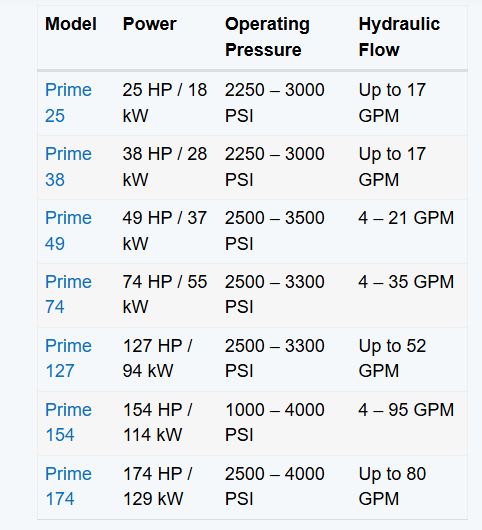

The Prime Hydraulic Power Units are available in multiple powers and models: Prime 25, Prime 38, Prime 49, Prime 74, Prime 127, Prime 154, Prime 174, and Prime 500
- Electric start with battery & weather safe battery box
- 500 Hours of Service, no DPF, no regen interval
- Air inlet emergency shutdown valve
- Double fuel and hydraulic filtration
- Engine safety shutdown package
- Engine monitoring System
- LOFA or Murphy engine monitoring system
- Guaranteed CARB Compliant—No DPF, No Active Regen
- Tier 4 Certified – John Deere, Isuzu, Deutz, JCB engines
- EPA rated engine with rubber engine shock points
- Hydraulic oil level & temperature indicators
- 5000 PSI Screw together 1″ supply & return fittings
- 5000 PSI hydraulic gauges
- Spill-free oil & fuel containment
- High Capacity Hydraulic Cooling System
- Hydraulic oil filter with spin on cartridge
- Dripless flush face hydraulic couplings
- High capacity hydraulic heat exchanger
- Low level hydraulic fluid shutdown
- Best in class 12 volt dual fan hydraulic cooling unit
- Multiple hydraulic circuits & upgraded control valves
- Single or twin circuit variable flow hydraulic controls
- Hydraulic tank low level shutdown
- AW-32 or AW-46 Oil
- Low level hydraulic fluid shutdown
- Emergency engine over speed shutdown
- Flame arrestor exhaust with heat shield
- Easy to read safety and operation labeling
- Safety transport ‘O’ ring binders
- Variable pressure hydraulic relief valve
- Custom radiator grill guard & overhead grating
- Center point eye pad lift
- Low point drain plugs & tank isolation valves
- Fully custom hydraulic circuits, pressures & flow
- Load Sensing or pressure compensating hydraulics
- Electric, air or hydraulic start
- 4” x 10” box tube skid rails & 10” forklift boots
- Increased capacity hydraulic cooler options
- Removable tanks with oversized clean out ports
- Low point drain plugs
- Fully boxed frame tubing for added protection
- Epoxy or powder coated frames available
- Variable hydraulic pressure and flow control
