Technology Dynamics - Model TSD Series - DC/DC Converters for Industrial and Military Applications

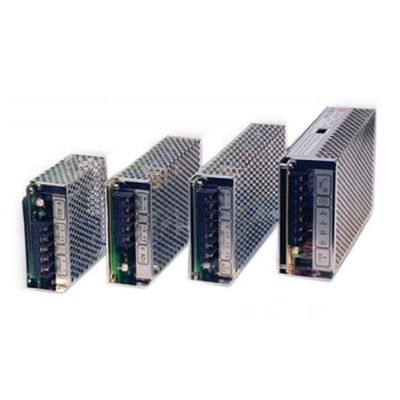

The TSD Series DC/DC Converters by Technology Dynamics is engineered for reliability in challenging environments. Offering a range of power output options from 25 to 150 Watts, these converters provide flexibility with voltage outputs including 5, 12, 15, and 24 Volts. Fully enclosed and isolated, they are designed for robustness, making them suitable for industrial, military, and commercial applications. Built to withstand harsh conditions, they feature rugged construction and are available in ruggedized COTS versions specifically for military use. Input voltage options range from 9-18 VDC to 72-144 VDC with line and load regulation maintained within a ±0.5% margin and ripple restricted to 1% peak-to-peak. Delivering typical efficiency at 80% and a minimum hold-up time of 20ms, these converters integrate protections against over-voltage, over-load, and over-temperature conditions. With an operating temperature range of 0°C to +55°C and storage temperature tolerance between -40°C to +85°C, these converters ensure longevity and performance.
