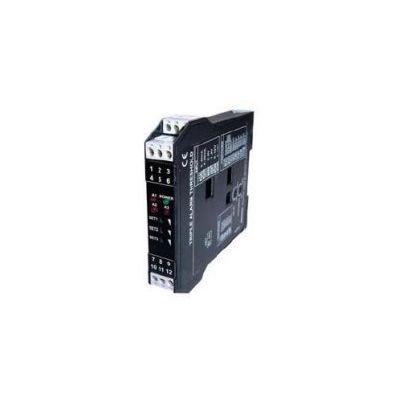

UniPak - Model UP108S/UP108D/UP108T -DC Input Alarm Trip Module
The UniPak UP108 module comes in 3 models to better fit the product to the application requirements. The UP108S is a single setpoint alarm trip, the UP108D is a two setpoint alarm trip and the UP108T is a triple setpoint alarm trip. Each setpoint is independently adjustable with multiple-turn potentiometers. Each setpoint features DIP switch configurable high or low trip. The high trip will change the state of the relay as the input signal increases, the low trip as the input signal decreases. The action of the relay is also configurable to be normally open or normally closed. The adjustable hysteresis (deadband) and adjustable time delay, to eliminate nuisance alarms, affects all setpoints. The time delay can be set from 0.3 to 30 seconds. The input is configurable for the most popular current and voltage ranges and is able to provide excitation for two-wire sensors. Alarm Trip flexibility and use made simple from ioSelect, powered by Seneca (Z113).
- Single, Double or Triple Alarm Trip
- Configurable Input Range
- Potentiometer Adjustable: Setpoint, Hysteresis and Delay
- Input Sensor Power Supply
- 3-Way Isolation: 1500 Vac Isolation Power to Output
- AC or DC Power (19-40 Vdc or 19-28 Vac)
- DIN Rail Mount (TS 35)
- Removable Terminal Blocks
Input Range
- Current :
- 0-20 mA or 4-20 mA
- 100 Ω Input Impedance
- 20 Vdc Input Excitation @ 20 mA
- Voltage:
- 0-5 V, 1-5 V, 0-10 V or 2-10 V
- ~1 MΩ Input Impedance
Output
- Relays:
- UP108S - 1 SPDT, UP108D - 2 SPST,
- UP108T - 3 SPST
- 1 A, 30 Vdc
- 5 A, 250 Vac (resistive load)
- Response Time : Adjustable: 0.3 to 30 s
- LED Status :
- Green LED=Presence of Power
- Red LED=Alarm Indication
- Red LED Flashes after time delay expires
- Isolation 1500 Vac 3-way: in-out-pwr
- Error 0.05%
Thermal
- Coefficient : 0.02%/°C
- Humidity : 30-90% @ 40 °C
Operating
- Temperature : 0 to 50 °C (32 to 122 °F)
Storage
- Temperature : -40 to 80 °C (-40 to 176 °F)
- Power : 19-40 Vdc or 19-28 Vac
Power
- Consumption : 2.5 W
- Dimensions: 17.5 x 100 x 112 mm (w x h x d) (0.69 x 3.84 x 4.14 in)
- Weight: 200 g ( 7.1 oz)
