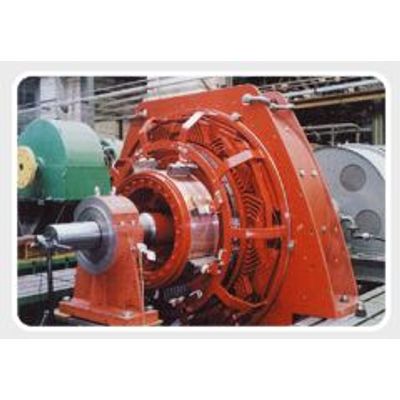

DC MOTORS FOR HOISTING MACHINES

Features:

• Good commutator properties
• Designed for supply from thyristor converters

Technical parameters:

• Output 1 450...3 600 kW
• Voltage 800 V ( max. 1000 V)
• Rotating speed 50...100 rpm
• Excitation separate
• Torque overload capacity 2 x TN

Design variants:

• Mounting arrangement IM 5510
• Method of cooling IC 17
• Degree of protection IP 00
• Other mounting arrangements, methods of cooling and degrees of protection available acc. to individual requirements

Application:
Hoisting machine drives in coal, metal ore and salt mining industry.
