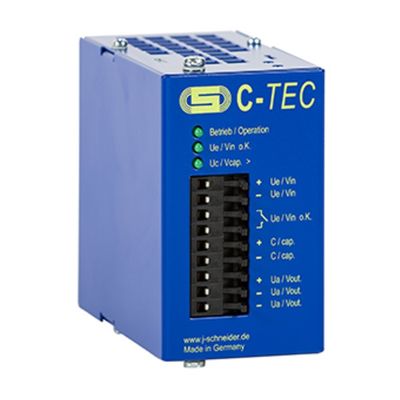

J. Schneider C-TecModel 2403 -DC UPS With Ultracapacitors

SHARE

Maintenance-free due to long-life ultracapacitors. Low wiring effort due to the integration of the energy storage device. Microcontroller-supported charging and discharging of the ultracapacitors. Mains monitoring via potential-free contact and LED. Vibration-proof wiring due to spring-loaded technology. Wide temperature range -40 °C to 60 °C. Art.-no. : NCPA0727G01***

Most popular related searches
  • input voltage: 24 V DC -1,2 % / +15 % (SELV/PELV)
  • energy: 0,5 or 1,5 kJ
  • output voltage in back-up mode: 23,0 V DC ±2 %
  • nominal output current: 3 A
  • dimensions (h x w x d): 92,5 x 60 x 116 mm
  • weight (kg): 0,6
