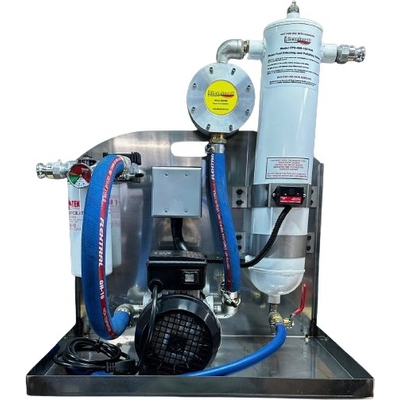

Dieselcraft - Model FPS-400S -Stainless Steel Wall Mount Fuel Polishing System

The base system utilizes a 7 gallon per minute continuous duty pump in conjunction with a Dieselcraft 5×24 purifier plus a 10 micron spin on filter.

Assembled with all Grade 8 fasteners on the 430 stainless steel backing plate and drip pan.

NOT FOR USE WITH GASOLINE

420 GPH subject to distance from the source.

• 115 volt motor with 7 GPM Pump.
• Filter-less Purifier to removes over 99% of water and large contamination in fuel without filters.
• Secondary absolute practical filtration to 10 microns standard.
• 10 each filters included. Takes standard buy anywhere spin on filters.
• Water/Debris alarm to indicate time to drain the purifier.
• Magnetic Fuel Conditioning.
• Digital flow meter.
• Flehtral GH-16 Hose
• Meets or exceeds the requirements of SAE 100R1AT and EN853
• DIN 20022 1SN-ISO 1436 Type 1.
• Tube: Synthetic Rubber
• Reinforcement: One braid of high tensile steel wire
• Cover: Blue Perforated, oil, abrasion and weather resistant synthetic rubber, MSHA approved
• Temperature: -40°F to 302°F, except for air 250°F max
