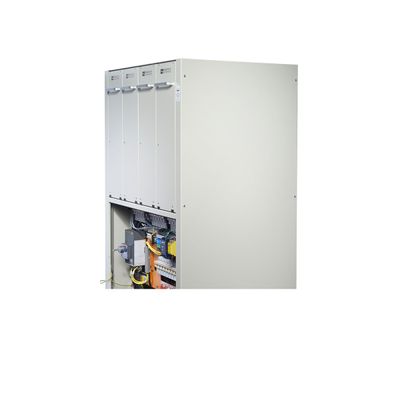

Digatron Formation Rectifiers

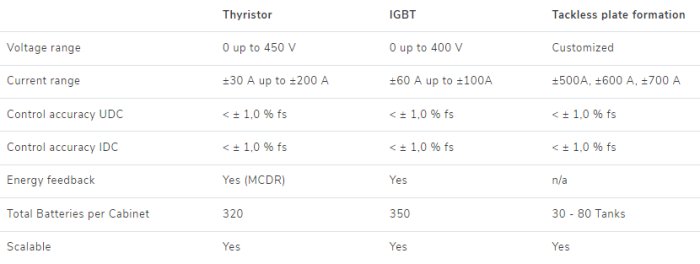

Digatron’s formation rectifiers are designed for the initial charge and optionally for the discharge of lead batteries. They have already proven their worth in thousands of installations through their flawless quality and reliability. Depending on your requirements, we supply the equipment with typical thyristor technology, IGBT technology, solderless formations, or in the energy-saving version of cutting-edge technology with SiC MOSFET. The rectifiers come with a current range of 20 A to 3200 A per circuit and capacities of up to 320 batteries or up to 80 tanks as TCR.
EASY SERVICING
All assemblies such as fuses, controller boards, semiconductors and shields are mounted on fold-out module supports. Thanks to this smart design, all the components are easy to access and can be serviced in no time at all.
HIGH ENERGY EFFICIENCY
The technology of all our formation rectifiers is exceptionally economical with energy. It uses the latest SiC MOSFET technology to improve the energy efficiency further.
HIGH COMPATIBILITY
Our rectifiers also work perfectly with the Inbatec acid circulation system, thanks to a native interface. The right addition for optimal formation.
INCREASED WORK SAFETY
All circuits are galvanically isolated from the grid and one another, which heavily reduces the risk of an electric shock.
