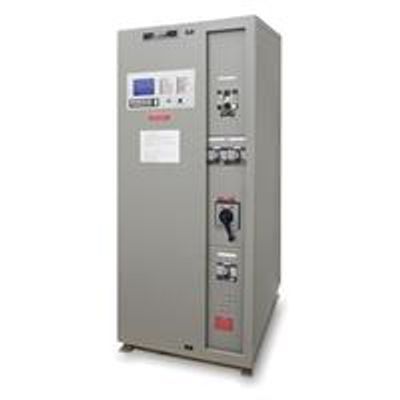

AMETEK - Model DPF - Digital Power Factor Corrected (DPF) UPS

SHARE

The Digital Power Factor Corrected (DPF) UPS from AMETEK Solidstate Controls is a true on-line, double conversion uninterruptible power supply system that maintains similar features as the DPP UP.

Most popular related searches
power factor correction
power factor
UPS system
power supply system
power quality system
monitoring of power quality
battery testing
power quality
power conversion system
inverter

It replaces the SCR based rectifier section with an IGBT-based, power factor corrected rectifier. The power factor corrected rectifier allows operation with high power factor (PF > 0.95) and with low total harmonic distortion (THDi < 5%). The DPF also allows for battery testing with reverse power flow (without the need of a loaded inverter).

For the remote monitoring of your power quality system, UPSView can be included with the DPF to provide real-time health and status of your AMETEK Solidstate Controls equipment. To view the demo of this user-friendly communication package, please click here.
