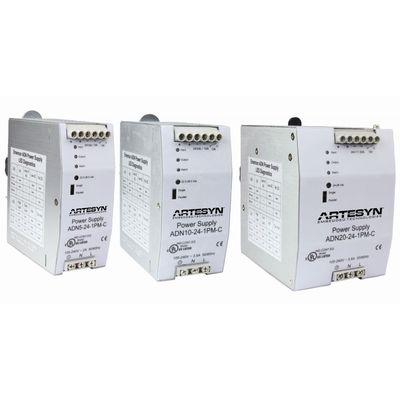

Advanced Energy - Model Artesyn - ADN-C Single Phase Series -Din Rail Mounting Single-Phase AC-DC Power Supplies System
The ADN-C series of single-phase DIN rail mounting AC-DC power supplies provides a compact, efficient and easy-to-use solution for industrial applications. Their slim form factor helps to maximize per-rail power density and front panel status LEDs facilitate diagnostics and troubleshooting. Features include active PFC, adjustable output, overvoltage with auto protection, parallel operation capability, and a five year warranty. This DIN rail power supply series is perfect for applications such as machine control, process control, conveying equipment, material handling, vending machines, and packaging equipment, as well as test and measurement and gaming applications.
Most popular related searches
AC-DC power supply
DC power supply
power supply unit
power supply system
DC power unit
DC power system
mount power supply
overvoltage
overvoltage protection
- Frequency 47-67 Hz, 400 Hz
- Active PFC > 0.92
- Input Range 85-264 VAC, 90-375 VDC
- Inrush Current up to < 15 A
- Initial Voltage Setting 24.5 VDC
- PowerBoost 1.5x nominal current for 4 seconds
- Line and load regulation < 0.5%
- Voltage 24 VDC (22.5 to 28.5 VDC Adj)
- OVP > 30.5 VDC but < 33 VDC with autorecovery
- Hold-up time > 20ms
- Time and Temperature drift < 1%
- Slim Form Factor
- High Efficiency up to 92%
- High Quality through MTBF > 450,000h
- Operating Temperature from -25°C (-10°C for some models) to 70°C. Derate starting at 60°C.
- 3 LED providing 8 diagnostic status
- PowerBoost to support high inrush loads
- Active PFC > 0.92
- Metal Case with DIN rail mounting clip
- Warranty 5 years
- Output Power (W): 960
- Length (Inches): 4.37
- Width (Inches): 1.97
- Height (Inches): 4.85
- Mounting Type: Din Rail
- Minimum Output Current (A): 0
- Maximum Output Current (A): 40
- Output Voltage Range (V): 22.5V to 28.5V
- Minimum Output Power (W): 960
- Maximum Output Power (W): 960
- Minimum Input Voltage (V): 85
- Maximum Input Voltage (V): 264
- Warranty (Years): 5
