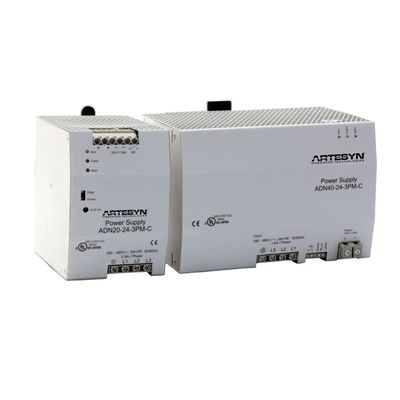

Advanced EnergyModel Artesyn - ADN-C 3-Phase Series -Din Rail Mounting Three-Phase AC-DC Power Supplies System

SHARE

The ADN-C series of three-phase DIN rail mounting AC-DC power supplies is ideal for a wide range of heavy duty industrial applications – especially those involving large inductive loads – including machine control, semiconductor fabrication, conveyor and material handling systems. These highly efficient ultra compact 24 VDC output power supplies operate directly from three-phase inputs and accommodate virtually all standard line voltages worldwide.

Most popular related searches
  • Frequency 50-60 Hz
  • Input Range 320-540 VAC, 450-720 VDC
  • Active PFC > 0.92
  • Hold-up time > 20ms
  • OVP > 30.5 VDC but < 33 VDC with autorecovery
  • Voltage 24 VDC (24.0 to 28.0 VDC Adj)
  • Voltage Regulation < ± 2% overall
  • PowerBoost 1.5x nominal current for 4 seconds

  • Output Power (W): 960
  • Length (Inches): 4.85
  • Width (Inches): 7.09
  • Height (Inches): 4.85
  • Mounting Type: Din Rail
  • Minimum Output Current (A): 0
  • Maximum Output Current (A): 40
  • Output Voltage Range (V): 22.5V to 28.5V
  • Minimum Output Power (W): 0
  • Maximum Output Power (W): 960
  • Minimum Input Voltage (V): 320
  • Maximum Input Voltage (V): 540
  • Warranty (Years): 5
