Adaptronic - Model NT 800-1 -Distributed Wiring Tester System

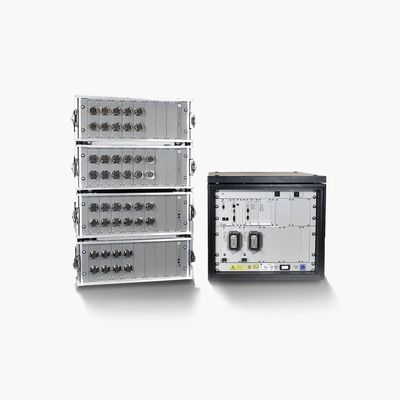

The NT 800-1 wiring tester is designed for testing up to 131,072 test points, particularly for very large test items such as those used in the aerospace industry. The NT 800-1''s distributed test systems consist of a base unit (control unit and measurement technologies) and additional test point units (TPU) with the included test points, which can be arranged centrally or in a satellite-like pattern around the test item. These remotely controlled TPUs, a large selection of application-specific test point interfaces, and simple control via the NT Control software enable a high degree of automation in the creation of test programs.The system''s modular design allows testing jobs of up to 1500 VDC (optionally 1060 VAC) to be carried out at a maximum expansion level of 131,072 test points. This makes the NT 800-1 suitable for the preassembly and disassembly of aircraft, helicopters, satellites, and other spacecraft as well as for their supply industry.
NT 800-1
Metric
- High voltage test (AC) max.: 1060 V
- Test current (AC) min.: 6 mA
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Dimensions/height: 630 - 2150 mm
- Width: 600 mm
- Dimensions/depth: 800 mm
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 10 °C
- Ambient temperature, operation max.: 40 °C
- Ambient temperature, storage min.: 10 °C
- Ambient temperature, storage max.: 60 °C
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 1060 V
- Test voltage (DC) max.: 1500 W
- Test current (DC) max.: 2 A
- Test points, total max.: 131072
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 1500 V
- DIO voltage max.: 24 V
Imperial
- High voltage test (AC) max.: 1060 V
- Test current (AC) min.: 6 mA
- Control software: NT Control
- Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
- Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
- Voltage (AC), input max.: 230 V
- Frequency, input min.: 50 Hz
- Frequency, input max.: 50 Hz
- Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
- Ambient temperature, operation min.: 50 °F
- Ambient temperature, operation max.: 104 °F
- Ambient temperature, storage min.: 50 °F
- Ambient temperature, storage max.: 140 °F
- Air humidity non-condensing min.: 30 %
- Air humidity non-condensing max.: 70 %
- Test voltage (AC) max.: 1060 V
- Test voltage (DC) max.: 1500 W
- Test current (DC) max.: 2 A
- Test points, total max.: 131072
- Continuity test via threshold identification min.: 0.001 Ω
- Continuity test via threshold identification max.: 10000000 kΩ
- Short-circuit test via threshold identification min.: 20 kΩ
- Short-circuit test via threshold identification max.: 5 MΩ
- Resistance measurement min.: 0.001 Ω
- Resistance measurement max.: 10000 MΩ
- Capacitance measurement min.: 10 nF
- Capacitance measurement max.: 0.02 F
- High voltage test (DC) max.: 1500 V
- DIO voltage max.: 24 V
