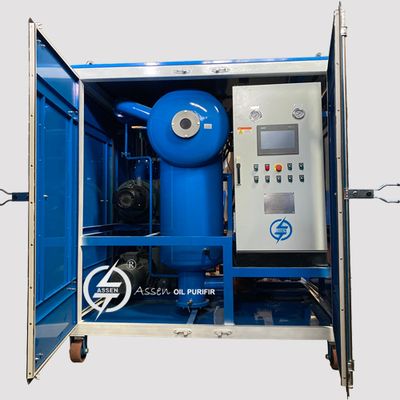

ASSEN - Model DVTP -Double stage vacuum Transformer Oil Purification System
ASSEN DVTP transformer oil purification process serves to improve the properties of insulating oil. It eliminates the acid nature, over moisture, traces of water, dissolved gases, and particulate matter from the insulating oil effectively and rapidly. The bottom line of this purification process is to enhance the performance level of transformers, circuit breakers, mutual inductors, cables, and capacitors. All these equipment and machinery use an insulating system. After treatment Moisture PPM ≤3 Gas content % ≤0.01 Impurity size μ ≤1 (no free carbon) Breakdown voltage kV ≥75 IFT dynes/cm ≥40 Acid value mgKOH/g ≤0.03 Dielectric loss factors tgδ(90°C) ≤0.001 For any inquiry, please contact ASSEN for more details.DVTP High Vacuum Transformer Oil Purifier Machine is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.
Features:
Expectations on an effective oil plant for treatment of insulating oil.
Suitable for oil treatment, vacuum oil injection and cyclic hot oil drying in the installation and maintenance of large capacity transformers.
Easy and failsafe operation.
On-line measuring and recording of process parameters.
Used in the electric power system (110kV~500KV).
Features include low noise, high-strength working vacuum, and high efficiency filtering process
Double-stage vacuum system, strong power of vacuum evacuating, ultimate vacuum value ≤5Pa
The unit can be used for the transformer vacuum oiling and for various wet electrical equipment vacuum drying.
Flexibility in application(flow frequency conversion, suitable for transformers of different sizes)
It is humanization design with low noise, deep purification and long time free maintenance to save cost from the running process.
DVTP Series High Voltage Transformer Oil Purification System Machine is mainly used to improve the properties of insulation oil. It can remove trace water, gas, particulate matters etc. from the insulating oil effectively and rapidly so as to boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which has insulation system.
