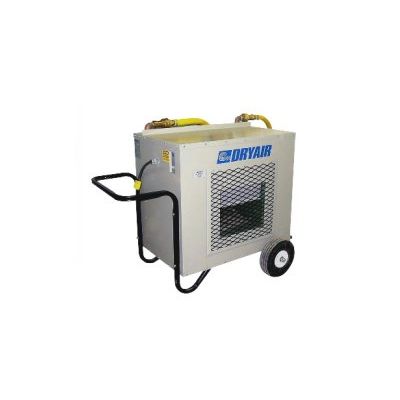

Dryair - Model HEFA 200 -Portable Heat Exchangers

BTU output – 201,364 BTU/H. Based on 200°F (93°C) supply fluid and 32°F (0°C) ambient air, 2,300 CFM air flow and 15 GPM fluid flow Blower. G Series double inlet. Output – 2,300 CF. Motor – 1Hp, 3 Speed. Power Requirements – 120V, single phase, 60Hz, 12.7A. Controls – thermostatic temperature control. Weight – 210 LBS. (95 KG). Dimensions – W(32″) x L(50″) x H(39″). Fluid Lines – 1″ I.D. w/ 1″ hydraulic style quick couplers. Optional. Sky hook – bolt-on. Humidistat – humidity controller, electrical in-line.
