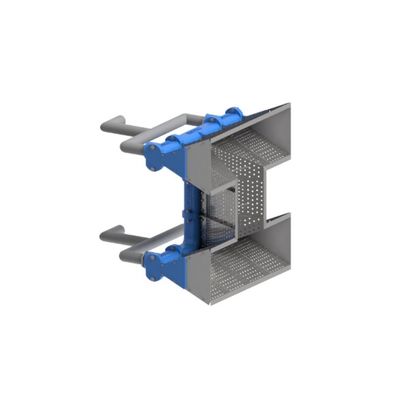

Model VG - Duct Burners

VG are suitable for heating fresh air in make-up and process air heating applications with minimum 18% O2. VG are assembled with straight sections 150 and 300 mm and Cross and TE sections that allow to create the burner shape according to customer needs. Multi-fuel with 30:1 (Also more) TurnDown, VG produces  a uniform, odorless, and smokeless flame with low NOx emissions. Line burners constructed of cast iron gas body and INO310S air wings that allow to pre-heat the air up to 700°C
