piezobrush® PZ3 - Effective plasma handheld device for manual use

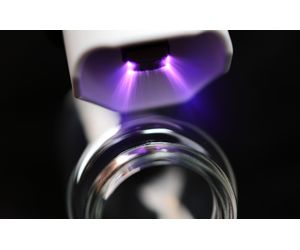

Piezobrush® PZ3 has been designed as a compact plasma handheld device for use in laboratories, predevelopment and assembly of small series. With a maximum power consumption of 18 W, the Piezoelectric Direct Discharge (PDD®) technology is used to generate cold active plasma at a temperature of less than 50°C. The heart of this portable plasma device is the TDK piezo plasma generator CeraPlas™ – a high-voltage discharge device for generating cold atmospheric-pressure plasma. Plasma is used to increase the surface energy of many materials with high efficiency, as well as to reduce germs and odors.
Possible use cases
◊ Activation and functionalization of surfaces of various materials
◊ Improvement of wettability
◊ Optimization of bonding, painting, printing and coating processes
◊ Surface treatment of plastics, glass, ceramics, metals, semiconductors, natural fibres and composite materials
◊ Ultra-fine cleaning and odour reduction
Fields of application
◊ Joining technology
◊ Development and optimization of production processes
◊ Research facilities and laboratories
◊ Microbiology, microfluidics and food technology
◊ Medical and dental technology
◊ Prototype and architectural model making
◊ Small-scale production
Technical data piezobrush® PZ3
Electrical connection: 110-240 V / 50-60 Hz
Power consumption: max. 18 W
Weight: 110 g
Design: Handheld unit with plug-in power supply, integrated fan
Sound pressure level: 45 dB
Plasma temperature: < 50 °C
Treatment speed: 5 cm²/s
Typical treatment distance: 2 – 10 mm
Typical treatment width: 5 – 29 mm

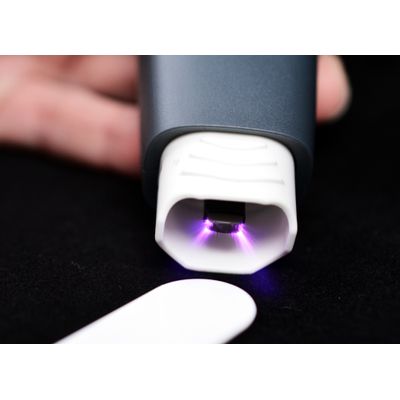

Modules
Different surfaces have to be activated with the appropriate accessories to achieve an ideal result. Currently two different modules are available for the piezobrush® PZ3 plasma handheld device. The PDD technology used to generate the cold plasma in piezobrush® PZ3 is based on the discharge of high electric fields. Therefore, the electrical conductivity of the component to be treated is of decisive importance when choosing the modules.
Display
For process control of plasma treatment, the piezobrush® PZ3 is equipped with various features that can be selected and modified via the display.
Process control
◊ Stopwatch: For monitoring the treatment time
◊ Countdown: Time setting with automatic switch-off function
◊ Metronome: Acoustic feedback after defined treatment time
Power adjustment: Reduction of plasma power in several increments
