Torq N' Seal - Model TNS-ECP -Elastomer Condenser Plug for Heat Exchangers
The Torq N’ Seal® Elastomer Condenser Plug (TNS-ECP) is designed for plugging tubes in condensers and low pressure heat exchangers with pressures up to 250 PSI. This product offers a simple installation method involving a Hex Capture Drive compatible with any standard 3/8” square drive torque wrench. It is ideal for heat exchanger tubes with inner diameters ranging from 0.580” to 1.200” and can handle temperatures up to 300°F. Utilizing this plug can simplify maintenance during outages and turnarounds, ensuring timely and cost-effective project completion. The plug's design focuses on providing a reliable seal for low-pressure applications, streamlining the replacement process in energy sectors requiring performance and maintenance equipment. For those needing higher specifications, the brand also offers solutions with pressure tolerances of up to 7,000 PSI and temperature resistance of up to 2,000°F.

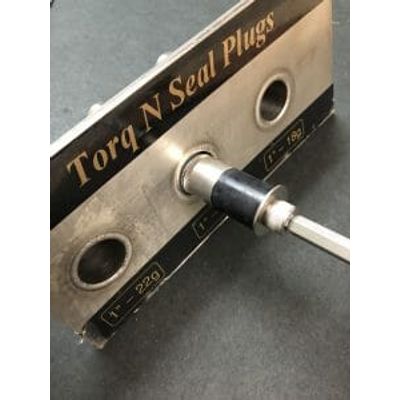

The TORQ N’ SEAL® Elastomer Condenser Plug (TNS-ECP) is the brand NEW solution for your condenser and low pressure heat exchanger tube plugging needs! These plugs are installed simply with the always free, always included Hex Capture Drive. Just attach to any standard 3/8″ square drive torque wrench and you are good to go. Have a heat exchanger with pressure less than 250 psi, temperature below 300 deg F, and tube ID between 0.580″ and 1.200″? Then try out the Elastomer Condenser Plug to save you time and headaches, allowing you to finish outages and turnarounds on time and under budget! Use the Installation and Documentation links below for more information,
-
250 psi. Positive sealing in excess of 250 PSI.
- 350 deg F. Can handle temperatures up to 300 deg F.
- Large Expansion Range. Just 6 plugs cover tube ID’s from 0.580″ to 1.200″.
- Chemical Resistance: Excellent in 10% Sulfuric Acid; Sodium Chloride Solutions; Ozone; Oxidizing Environments; Refrigerant 134a; Good Service life in 10% Nitric Acid and Radiation
- Corrosion Resistance: Meets MIL-A-8625F And ASTM B117 Salt Spray Test
- Low Installation Torque: 120 in. lbs. (13.50 Nm)
-
NO Special Tooling or personnel training. All you need is the Hex Capture Drive that comes included free with every purchase and a standard 3/8″ square drive torque wrench.
-
Quick Installation. Torq N’ Seal® plugs can be installed in just seconds, the only tool you need is included for free with every purchase.
- Variable Installation Depth. Plug can be inserted to any depth of the tube sheet in order to avoid severely corroded areas on the tube sheet face.
-
Fit Into Tight Areas. Design enables rapid implantation and fit into tight areas adjacent to the tube sheet/shell joint interface, baffle plates and internal dividers.
-
Wide Sealing Area contact zone ensures a positive seal.
