IFS - Model CP6012-100.0 -Electric Process Heater Control Panels

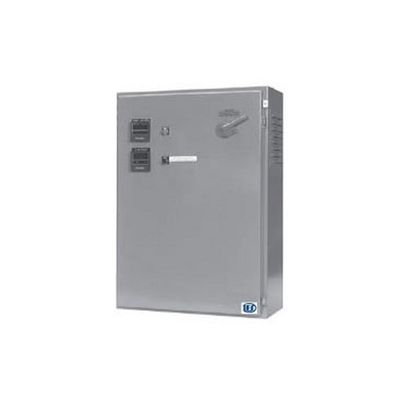

The Integrated Flow Solutions 6012 Series Electric Heater Control Panels offer convenient, economical control of resistive loads. A broad list of configuration options allow the 6012 series control panel to fit most common electric heater control requirements. These pre-engineered, pre-wired panels require only sensor, load and power supply connections. The 6012 Series Heater Control Panel totally eliminates the engineering, design, component procurement, assembly and testing steps required to build a control panel.
SCR power control efficiently and accurately proportions power to the resistive heating load. Unlike traditional contactor control, SCR’s deliver:
- Reduced Power Cost
- Extended Heater Life
- Lower Maintenance
- Improved Process Products
- Stable Process Temperature
- Complete Control Function Testing
- 24/7 Customer service
Integrated Flow Solutions offers customized heater control panels to meet customer specific applications around the world.
- Painted Steel NEMA 12 Enclosure
- 3-Leg, 2-wire Zero-cross SCR Power Control protected by fast acting fuses
- Fan Cooling
- Load Fusing for up to 8 Circuits
- Lockable Main Power Disconnect
- 120 Volt Control Power transformer with primary and secondary fusing
- Front Panel Power and Alarm Indicator Lights
- Element Over-temperature Controller Manual Reset and Safety Contactor
- Dry Contacts for External Run (Shut-down) Permissive
- Field Selectable Process or Differential Temperature Control
- Front Display Process Temperature and Set Point(s)
- Convenient Wall Mount Design
- Process Temperature Limit Controller
- Shorted SCR Detection
- Ground Fault Monitor & Shutdown with Illuminated Reset
- Ammeter & Voltmeter
- Floor Stand
- 1 to 8 Circuits
