CBRO - Model BTU250 - Electromagnetic BTU Meter

FromCBRO Instruments

SHARE

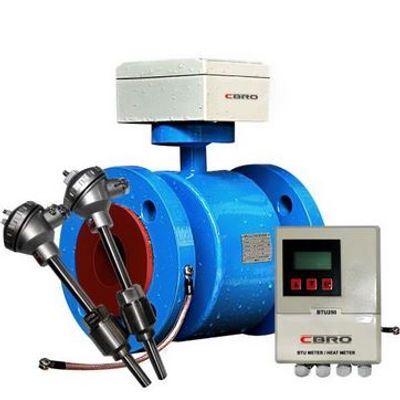

CBRO make Electromagnetic BTU meter [BTU-250] is designed to accurately measure the heat or cold energy of a water heating/cooling circuit. It is consisted of three parts, an electromagnetic flow sensor, a pair of temperature sensors and a main unit. The main unit is a powerful console which combines high accurancy flow measurement, temperature measurement and BTU Calculation. From this it calculates the thermal power and energy consumed in maintaning the temperature at given level. 9 digits are available for total energy and 4 digits are available for instantaneous power reading. The engg. unit can be easily selectable by user, either as KW & KWH or BTU / HR & BTU

Most popular related searches

solar hot water system

power plant efficiency

solar hot water

district energy

heating and cooling

geothermal system

energy consulting

energy management

Business Type: Manufacturer, Exporter, Supplier
Make: CBRO
Model: BTU250
Nominal diameter: DN15——DN3000mm
Lining material: Hard Rubber / PTFE

Product Details

Electrode material: SS316 / SS316L / Hasteloy C
End Connection: Flange ANSI 150 RF / Tri-clover
Accuracy: ± 0.25% of F. S. w. r. t inputs
Operating Pressure: 16 / 20 / 30 / 40 Bar High Pressure on Request
Operating Temperature: -25~50 Deg C
Power Supply: (A) 110/230 AC/24 V DC, 50/60 Hz (B) 4 Watts Maximum / Solar Power
Output: Isolated 4-20mA proportional to power output
Specifications :-: BTU CALCULATOR
Input: a) 4-20mA from Flow meter, b) RTD, PT100 / PT1000 (Inlet Temperature ), c) RTD, PT100 / PT1000 (Outlet Temperature )
Humidity: Below 90%, Non Condensing
Display: 16 x 2 LCD, 9 or 10 Digits for Total Energy & 5 Digits for instantaneous Totaliser Power
Energy / Heat Unit: Tr , BTU/Hr , Kwh , Kcal , Kcal/Hr
Language: English, Spanish, Russian, etc.; minor languages can be customized.
Totaliser Back-Up: Backup for Total Energy provide on power failure for 21/2 year
Log View: Possible by scrolling of keys(Optional)
Communication: RS232 / 485 Modbus Protocol
Wireless Communication: GPRS / WIFI / BACnet IP Protocol for BMS (Building Management System )

Chilled Water HVAC
Hot Water HVAC
Condensate And Heating Water Circuits
Boiler Feed Water
Thermal Storage, Geothermal System, Solar Hot-water System
District Energy Management And Billing
Commercial Building Tenant Billing
Leed / Green Building Verification,Green Credit Application
Energy Consulting
Power Plant Efficiency Monitoring
Facility Management In Shopping Malls, Campus, Industial Parks, Hospitals, Commercial Buildings,
Government Buildings, Airports And More
