ET Solar Group

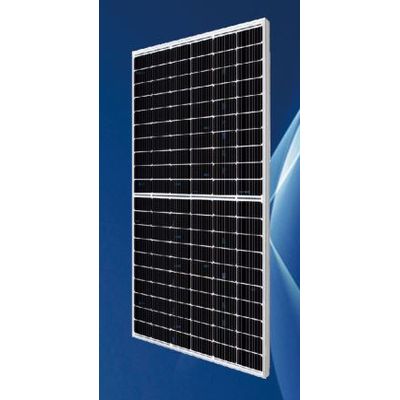

ET Solar - Model M660BH 360W~380W -Monocrystalline Solar Panel
FromET Solar Group
The M660BH by ET Solar is a monocrystalline solar panel with a power output range of 360W to 380W. It features 120 cells and dimensions around 1755 × 1038 × 35 mm, with a module efficiency approximately around 20.3% to 20.8%. The panel is designed with 3.2 mm tempered glass and anodized aluminum frame and supports system voltages up to 1500 V DC. It also has IP68 rated junction box with 3 bypass diodes for durability and better performance in diverse conditions.
Most popular related searches
monocrystalline solar panel
monocrystalline solar
solar panel
bypass diode
junction box
solar panel monocrystalline
cell operating temperature
solar panel output
UPS system
solar power
- Power Output: 360W to 380W
- Cell Type: Monocrystalline silicon, 166 mm cells
- Number of Cells: 120 (6 × 20 configuration)
- Module Efficiency: Around 20.3% to 20.8%
- Dimensions: 1755 × 1038 × 35 mm
- Weight: Approximately 20.3 kg
- Glass Thickness: 3.2 mm tempered glass
- Frame: Anodized aluminum alloy
- Maximum System Voltage: 1500 V DC (IEC)
- Junction Box: IP68 rated with 3 bypass diodes
- Cable: Standard 4.0 mm² output cables
- High module efficiency with advanced cell technology
- Lower operating temperature for increased power output
- Suitable for extreme wind and snow load conditions
- Good performance in weak light conditions such as cloudy weather or early morning/late evening
