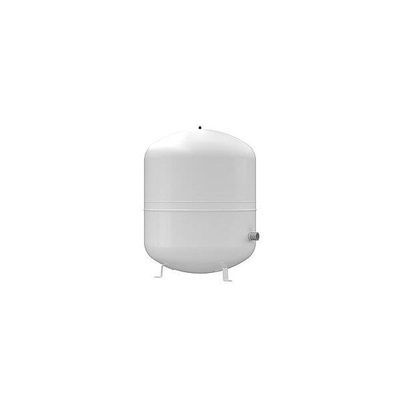

Reflex - Model NG 50, White -Expansion Vessel, 6/1,5 Bar
Reflex NG, diaphragm expansion vessel for sealed heating and cooling systems, built acc. to EN 13831. Approval acc. to EU Pressure Equipment Directive 2014/68/EU. Welded construction, foot construction from 35 ltr and above, durable external epoxy powder coated finish, fixed diaphragm.
Most popular related searches
heating and cooling system
heating and cooling
solar-powered cooling
solar power
solar power water
heat and power
solar cooling system
solar power system
solar heating
solar cooling
- welded construction
- foot construction from 35 ltr and above
- durable external epoxy powder coated finish
- fixed diaphragm
- Type: NG 50
- Nominal volume: 50 l
- Useful volume max: 45 l
- perm. flow temp. supp. Ins.: 120 °C
- perm. op. temp. diaphragm: 70 °C
- perm. op. overpressure: 6 bar
- Gas inlet press. Ex works: 1,5 bar
- Diameter: 409 mm
- Height: 469 mm
- Net weight: 5,65 kg
- System connection: R 3/4
- Colour: weiß
