SEMITRANS - Model 2-9 - Faster Switching, Higher Power, Proven Package

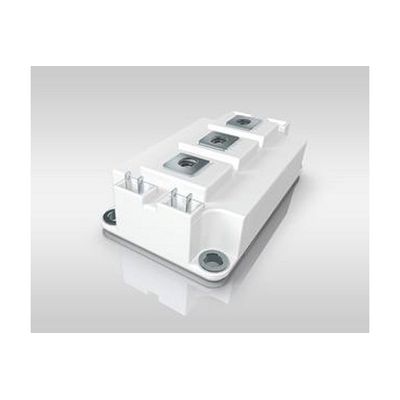

SEMITRANS is a robust industry standard package with copper baseplate and screw terminals for the power connections. The SEMITRANS package features a low-inductance design and can be used for inverters from 20kW to 500kW. The modules are available for up to 900A and 1700V, achieved with different IGBT sources and SEMIKRON CAL diodes. With more than 25 years of market experience, the SEMITRANS package delivers a well-established tried and tested standard design.
- Robust industry standard package
- Multiple IGBT sources
- Large portfolio
- Special housings with low inductance for safe operation with high DC-link voltages
- Available in 600V, 650V, 1200V and 1700V
- From 25A to 900A
- Half-bridge, single switch, chopper, multilevel, Sixpack and common emitter topologies
- Insulated copper baseplate using DBC
- Integrated gate resistor
- High isolation voltage
This tried and tested package is designed for a wide range of applications such as regenerative inverters and power supplies. The long service life is ideally suited to ambitious applications such as AC drives, switched reluctance and DC motors.
The SEMITRANS family offers a wide range of topologies and power ranges. All the standard voltage classes from 600V to 1700V are covered. The current rating ranges from 25A to 900A. The SEMITRANS package is available in half-bridge, chopper, single switch, multilevel, Sixpack and common emitter topologies.
Large Portfolio
- 25A - 900A, 6 housing sizes, different topologies
- A perfect fit for any application
