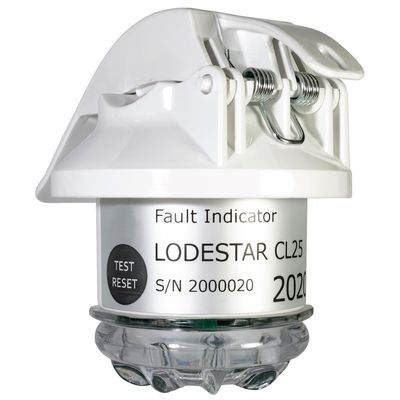

ATRIY - Model Lodestar CL2 -Fault Indicators for 6-70kV overhead lines (conductor mounted
Lodestar CL25 models is a simple solution for fault detection. Optimal factory settings allow CL25 to be used without any configurations in most cases. Just activate the device and place it on a conductor - CL25 will do its job in the best possible way.
• Brightest Light 360° Visibility - 3 ultra bright wide-angle LEDs provide overlapping fields of light;
• Simple installation - using a single hot stick;
• Easy to replace - no additional settings are required;
• Dynamically changing sensitivity based on a load current;
• Minimum fault sensing 25A;
• Auto-Detect Network Frequency — intellectual algorithms allow it to work in networks with frequency of 50 or 60Hz without reconfiguration ;
• Enhanced resistance to interference conditions in the air.
Technical characteristics
| PARAMETER | VALUE |
| Operating voltage | 6-35 kV 36-70 kV (option with Faraday cage) |
| MIN fault sensing | 25A |
| Absolute current threshold | 100A, 250A, 500A, 1000A |
| Differential current threshold | 50%, 100%, 200% 25A, 100A, 200A, 500A |
| Response time | 20 ms |
| Inrush resistance | 0 to 200 ms |
