Finned Tube Heat Exchanger

FromNational Instruments Corporation

SHARE

We have emerged as affluent manufacturer and supplier of Finned Tube Heat Exchanger. This is energy efficient and require less maintenance as compared to conventional heat exchangers. Our offered product is not only long lasting but has smooth finish. Using highest grade of raw materials sourced by our vendors, we manufacture and design the product using advanced technology.

Most popular related searches

tube heat exchanger

heat exchanger tube

energy efficiency

tube heat exchanger efficiency

heat exchanger efficiency

Minimum Order Quantity: 1 Piece
Voltage: 220 V AC
Phase: 1 Phase
Power: 5kW
Usage: Industrial

Learning Objectives/Experiments:

To Calculate The Lmtd
To Find Heat Transfer Rate
To Find Out Overall Heat Transfer Co-Efficient

Required for Operation:

Water Supply at constant head
Floor Drain

Technical Specifications:

System: Water To Water, Concentric Tube Type
Inner Tube: Dia 32 mm Approx., Length 500 mm (Made Of Stainless Steel)
Longitudinal Fins: Width 20 mm, Length 500 mm, 6 Nos (Made Of Stainless Steel)
Water Flow Measurement: Rotameters For Hot And Cold Fluid
Hot Water Tank: Made Of Stainless Steel Double Wall, Insulated With Ceramic Wool
Hot Water Circulation: Magnetic Pump Made Of Polypropylene To Circulate Hot Water Maximum Working Temperature Is 85°C
Heaters: 2 Kw Nichrome Wire Heater (2 Nos.)
The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.

Control Panel:

Digital Temp. Controller: 0-199.9°c. (For Hot Water Tank)
Digital Temp. Indicator: 0-199.9°c, With Multi-Channel Switch
Temperature Sensors: Rtd Pt-100 Type.
Standard Make On/Off Switch, Mains Indicator Etc

Scope of Delivery:

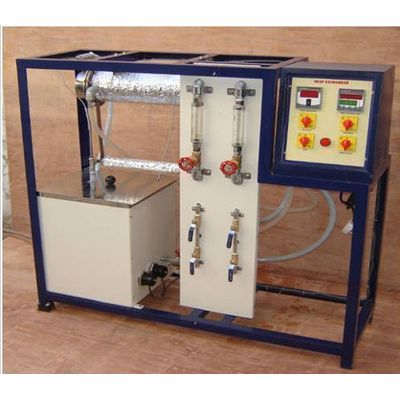

1 Self Contained "Finned Tube Heat Exchanger" Apparatus
1 Instruction Manual consisting of experimental procedures, block diagram etc.
